Medilec, Residual Current Circuit Breaker, 2 Pole, 20A, 10mA, 250V, Horizontal

Back to Horizontal Mount Home ML2000 RCDs Horizontal Mount

White Electric | Medilec, Residual Current Circuit Breaker, 2 Pole, 20A, 10mA, 250V, Horizontal

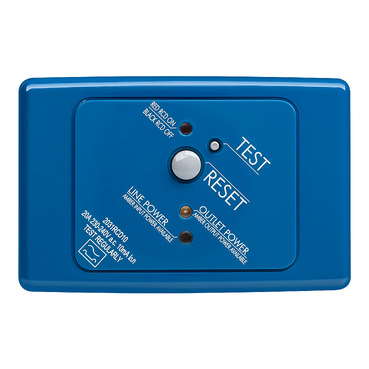

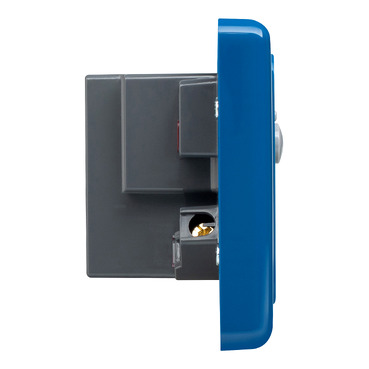

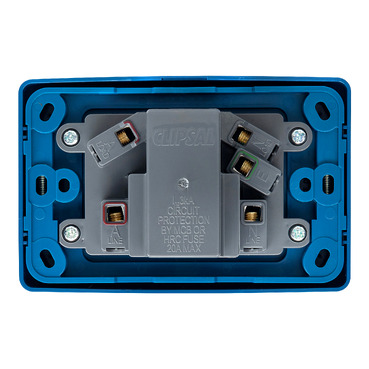

Medilec, Residual Current Circuit Breaker, 2 Pole, 20A, 10mA, 250V, Horizontal

Item Number: ML2031RCD10-WE

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

  • ML2000 Moulded Series
  • Medilec

Product or component type

residual current device

Product brand

Clipsal

Physical

[In] rated current

20 A

[Ue] rated operational voltage

250 V AC

Standards

AS/NZS 3190

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 Bare Product Quantity

1

Poles description

2P

Earth-leakage sensitivity

10 mA

Earth-leakage protection class

type I

Size

116 x 76 mm conforming to DIN 43880

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7 cm

Package 1 Width

9.1 cm

Package 1 Length

11.7 cm

Package 1 Weight

176 g
Show all specifications
