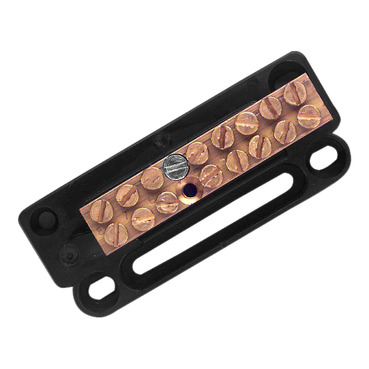

Max 4 Neutral Active Meter Links, 8 Hole, Link Less Cover

Max 4 Neutral Active Meter Links, 8 Hole, Link Less Cover

Max 4 Neutral Active Meter Links, 8 Hole, Link Less Cover

Item Number: L8A

Retail
N/A
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Blue Point

Product or component type

neutral link

Physical

[In] rated current

100 A

[Ue] rated operational voltage

500 V

Connector type

screw terminals

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Cable cross section

16-16 mm²

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

66 g

Package 1 Height

27 mm

Package 1 width

34 mm

Package 1 Length

80 mm
Show all specifications

Frequently Asked Questions

hide show

How many mounting inches are needed for an I-LINE Powerpact L frame?

Product Line:
Circuit Breakers

Environment:
Powerpact L, I-line version

Resolution:
The I-line version of the Powerpact L Circuit Breaker requires 6 inches of bus. This is sometimes referred to as the "mounting height requirement".

What is the AC3 rating of the LC1D18***

 The rating is 18A

Difference between LUA contact blocks and LUF contact blocks in a TeSysU

Issue:
What is the difference between the LUA contact blocks and the LUF contact blocks on a TeSysU motor starter?

Product Line:
TeSysU Simple Motor Starters

Environment:
US Product

Resolution:
The LUA contact blocks are for signalling and will change state depending on mode or fault condition(s). These consist of one "Ready Condition" contact that operates with the handle and one "Fault Condition" contact that operates only when a fault is seen.  The LUF contact blocks are standard contact blocks and will change state with the poles.

What is needed to replace a Model 85 Temperature Controller with a Model 98A Retrofit Kit ?

Issue
Retrofit of a Model 85 Temperature Controller.

Product Line
Medium Voltage Dry Type Transformers

Resolution
Use a kit part # 24806-001-50 for Indoor Xfmer or  24806-001-51 for Outdoor Xfmer. Kit comes with K thermocouples to replace existing thermistors . Include serial # of transformer so the controller can be set for correct temperature rise otherwise 80C is default .

Attached is the document "Instructions for Field Retrofit of a Model 98A Digital Temperature Controller in place of a Model 85 Temperature Controller" 24806-003-01 Rev 0
This document contains a set of instructions for retrofitting a Model 98A Digital Temperature controller in place of an existing Model 85 Temperature controller.

Model 98A Retrofit Instruction Bulletin.pdf

Note: For Model 98A controller replacement only (no retrofit kit w/ enclosure), the part numbers are:
2480600850 - Indoor
2480600851 - Outdoor


Does Schneider Electric offer a suitable replacement for Berger Lahr stepping motor VRDM397/50LNA with ID number 52025015000 ?

Yes, the exact replacement for VRDM397/50 LNA OOIP41 with ID number 52025015000 can be ordered using the new Schneider Electric ordering number of BRS397NS0010



What is the Schneider Electric replacement for a Berger Lahr stepping motor type VRDM368/50LHA with ID number 52024045000 ?

The Schneider Electric reference number of BRS368H130AAA is now used to order the exact replacement motor for Berger Lahr type VRDM368/50 LHA with ID number 52024045000.

The replacement will be the exact replacement, only the part number has been changed to a Schneider Electric part number.


rev 9-4-19
