Clipsal - Max 4 Mini Active link 100 A 500 V 7 hole with cover back wiring Red

Back to Neutral, Active, Meter Links Home MAX4 Link Bars Neutral, Active, Meter Links

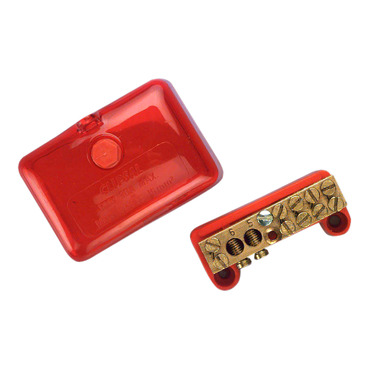

Clipsal - Max 4 Mini Active link 100 A 500 V 7 hole with cover back wiring Red

Clipsal - Max 4 Mini Active link 100 A 500 V 7 hole with cover back wiring Red

Item Number: L7BWR

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

MAX9

Product brand

Clipsal

Range of product

Blue Point

Product or component type

active link

Physical

[In] rated current

100 A

[Ue] rated operational voltage

500 V

Connector type

screw terminals

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 Bare Product Quantity

1

Cable cross section

16 mm²

Number of mounting holes

7

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.5 cm

Package 1 Width

6.2 cm

Package 1 Length

4.4 cm

Package 1 Weight

94 g
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Specification Guide

Technical Specifications - Enclosures and Chassis
ZIP

Technical Specifications - Enclosures and Chassis

VERSION

1.0

DATE

01 Jan 1900

REVISION

-----

DOWNLOAD (ZIP) 177.9 KB
