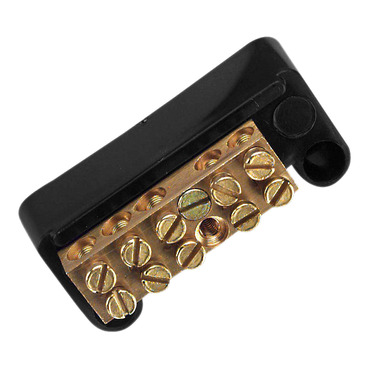

Clipsal MAX4 Mini Neutral link 100 A 500 V 5 hole less cover front wiring Black

Clipsal MAX4 Mini Neutral link 100 A 500 V 5 hole less cover front wiring Black

Clipsal MAX4 Mini Neutral link 100 A 500 V 5 hole less cover front wiring Black

Item Number: L5A

Retail
N/A
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Blue Point

Product or component type

neutral link

Physical

[In] rated current

100 A

[Ue] rated operational voltage

500 V

Connector type

screw terminals

Number of poles

1

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

44 g

Package 1 Height

32 mm

Package 1 width

55 mm

Package 1 Length

25 mm
Show all specifications

Frequently Asked Questions

hide show

What are the red safety covers for the TeSys D LC1D contactors?

Issue:
What is the  red safety covers for D line contactor.

Product Line:
D-Line IEC contactors

Environment:
IEC Contactors  sold and used in the United States

Cause:
Requirement for safety covers in specific situations

Resolution:
LAD9ET1S for 9A to 65A contactors.
LAD9ET3S for 80A to 95A contactors.
LAD9ET4S for 110A to 150A contactors.
There are also auxillary contacts available for front mount with a ref cover, model LADN22S, 2NO + 2NC

Can I use a 15A socket with a 10A plug?

Yes, a 15A socket with a 10A plug will fit.

What is the AC3 rating of a PDL 56SW363/2

The AC3 rating is 18.5kw, 35A

What event sender types exist in C-Bus LUA Scripting?

C-Bus Automation Controller (5500SHAC and 5500NAC) LUA Scripting incorporates the following list of event senders.

These event sender types can be used within LUA Scripting to restrict execution of script code based on the sender. The following list details the abbreviated event sender type used in LUA Scripting and also the description.

bt = bluetooth
bn = bacnet
mb = modbus
en = enocean
wl = lm wall
rc = reactor
ek = ekey
w1 = 1-wire
sc = scenes
se = event script
ss = scheduled script
sr = resident script
us = user interface / visualization
rm = remote services
ap = apps
po = group monitor object polling
dl = dali
cb = cbus
cl = cbus keyword

Is there a horizontal version of Iconic 3041/45, single pole 250V, 45A cooking appliance isolator?

3041/45, single pole 250V, 45A cooking appliance isolator can be vertical or horizontal mounted. However the mechanism orientation cannot be changed.
For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=3041/45

What are the part numbers of the 32A and 45A cooker switches that are unmarked?

Below are the part numbers of the cooker switches that are unmarked.
2031/45 Single-pole 250V, 45A - 2000 Series
C2031/45 Single-pole 250V, 45A - C2000 Series
2031D32 Double-pole 415V, 32A - 2000 Series
C2031D32 Double-pole 415V, 32A - C2000 Series
2031/45N Single-pole, includes Neon, 250V, 45A - 2000 Series
C2031/45N Single-pole, includes Neon, 250V, 45A - C2000 Series
2031D32N Double-pole, includes Neon, 415V, 32A - 2000 Series
C2031D32N Double-pole, includes Neon, 415V, 32A - C2000 Series
For further information, please visit https://updates.clipsal.com/ClipsalOnline/Files/Brochures/A0000272.pdf
