Max 4 Neutral Active Meter Links, 13 Hole, Suits 150mm� Cables, Front Wiring

Max 4 Neutral Active Meter Links, 13 Hole, Suits 150mm� Cables, Front Wiring

Max 4 Neutral Active Meter Links, 13 Hole, Suits 150mm� Cables, Front Wiring

Item Number: L13/150R

Retail
$412.50
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Blue Point

Product or component type

link bar

Physical

[In] rated current

370 A

[Ue] rated operational voltage

500 V

Connector type

screw terminals

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Cable cross section

150-150 mm²

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

1.08 kg

Package 1 Height

60 mm

Package 1 width

60 mm

Package 1 Length

165 mm
Show all specifications

Frequently Asked Questions

hide show

Do you have a neutral link with at least 12 holes, 1 x 95mm and 1 x 50 mm?

We have the L13/150.

Does Clipsal have a Link Bar with at 13 tunnels and 1 x 50mm and 3 x 16mm tunnels?

Yes the L13/150 will suit those requirements.

What is the part number for link bar to accommodate 150mm2 cable?

The link bar part number is L7/150 (neutral) or L7/150R (active)
They will accommodate up to 150mm2 cable.

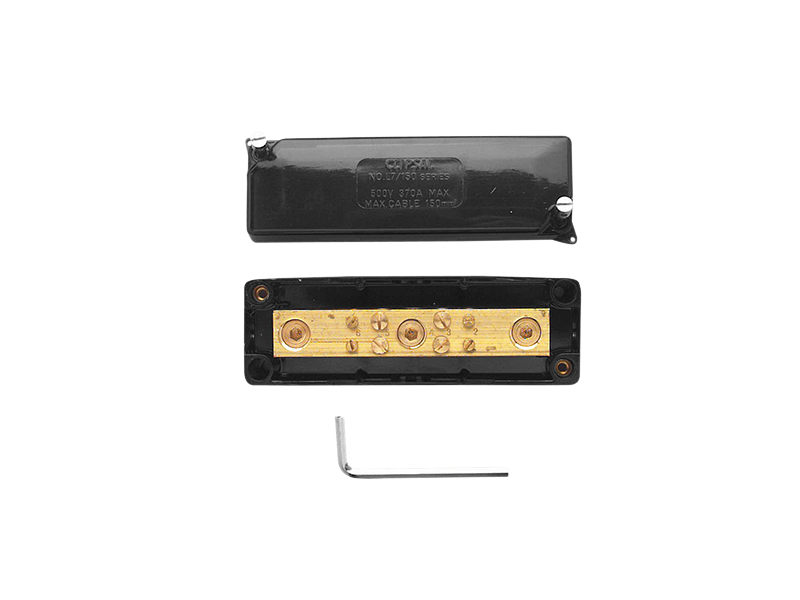

L7/150 Neutral Link, Maxi, 7 Hole, 370A                     L7/150R Active Link, 7 Hole, 370A,

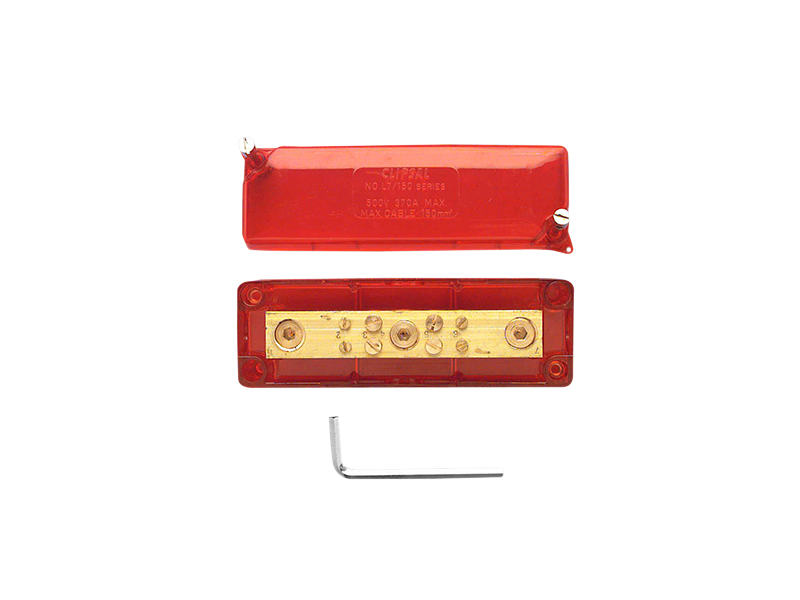

Front Wiring, Black Base and Cover                           Front Wiring, Red Base and Cover

For further information, please visit:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=L7/150
https://www.clipsal.com/Trade/Products/ProductDetail?catno=L7/150R



What is the part number for a 15amp surface socket?

The part number for a 15amp surface socket is - 413/15

For further information , visit link below:-
https://www.clipsal.com/Trade/search-results?q=413/15
User-added image

What is the part number for 13 hole active link with 2 tunnels for 150mm cables?

The part number for 13 hole active link with 2 tunnels for 150mm cables is - L13/150R

For further information visit link below:-
https://www.clipsal.com/Trade/search-results?q=L13/150R


What are the part numbers for neutral and active links that take 25mm cable?

The part numbers are L11/25 for the neutral link and L11/25R for the active link.

Is there an active link that can house a 35mm cable available?

Yes the part number is L10/35R

Do we have a neutral link bar with 13 holes and 2 at 25 mm each?

Yes, we have the L13/25.
