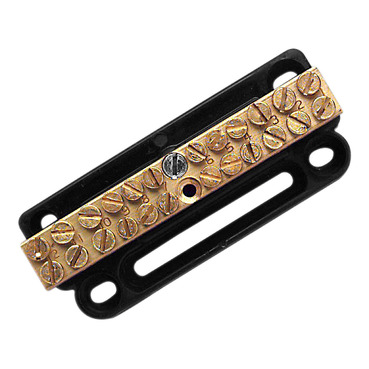

Max 4 Neutral Active Meter Links, 12 Hole Link Less Cover

Max 4 Neutral Active Meter Links, 12 Hole Link Less Cover

Max 4 Neutral Active Meter Links, 12 Hole Link Less Cover

Item Number: L12A

Retail
N/A
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Blue Point

Product or component type

neutral link

Physical

[In] rated current

100 A

[Ue] rated operational voltage

500 V

Connector type

screw terminals

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

82 g

Package 1 Height

27 mm

Package 1 width

33 mm

Package 1 Length

80 mm
Show all specifications

Frequently Asked Questions

hide show

Is there a 3 position marked "1, 0, 2" 2 pole cam switch 16A available?

Yes, the part number for a 3 position marked "1, 0, 2" 2 pole cam switch 16A is a 7GN12/52/U.
Brief :

 Rotary Cam Switches and Accessories, Rated Thermal Current (Ith) = 12A AC23A rating - 6kW at 415V. Rated Insulation Voltage Ui = 480V. Maximum 16A Fuse (gG/gL) for 3kA short circuit protection, 2 Pole 12A 60° changeover switch with Off marked 1-O-2.

Some of the key features are:

  • Front mounting
  • AC23A Rating
  • Changeover switch with OFF marked 1-O-2
For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=7GN12/52/U​







How do you factory reset the Altivar ATV18 unit?

Issue:
Factory reset the Altivar ATV18 unit.

Product Line:
ATV18

Environment:
All

Cause:
Factory reset

Resolution:
First, set parameter L2A to YES so that you can access level 2. Then set parameter FCS to Yes to program the unit for Total factory settings

Is the current rating of a plug in relay restricted to the current rating of the socket?

Issue:
Is the current rating of a plug in relay restricted to the current rating of the socket?

Product Line:
Zelio plug in relays and 8501 plug in relays

Environment:
Plug in relays, NEMA and IEC

Cause:
What is the true current rating of a plug in relay

Resolution:
Plug in relays are restricted to lowest current between relay and socket, so if socket is rated for 15 amps and socket is rated for 12 amps, the relay is restricted to 12 amps.

Keywords:
RSL, RSB, PXM, RPM, RUM, RPF, 8501 KP RS KPD RSD




Hide Section - Case Description

Case Description:

Customer Request
(FAQ)RSB1A160F7 has a 16A rating but socket has a 12A rating so is relay when used with socket only rated for 12A?
Closing Criteria

Answer To Customer
Relay would be restricted by the current of the socket so used with the socket relay would only be rated for 12A.

How is the PID setup on an ATV18 drive?

Issue:
PID setup on an ATV18

Product Line:
Altivar 18, ATV18.

Environment:
All

Cause:
Setting up PID to maintain level desired.

Resolution:

If you are using a 0-20mA or 4-20mA as your feedback then you will have to use AIC terminal.
With  AIC is your feedback.  There is no parameter in the drive that we can use to set your setpoint therefore you will need to use AI1 to set your setpoint.   This will be a 0-10VDC to act as your setpoint.

For programming,

Find L2A and set it to yes.
PID is not compatible with JOG or Preset speed functionality.
Go to LI2, L3, and L4 and set them all to OFF unless otherwise needed.

If a 4-20mA is used, go to AIC and set it to PIF.
Go to CRL and set it to 4.0 or 4-20mA or keep at 0.0 for 0-20mA.

If a 0-10VDC is used for feedback then set AI2 as PIF and ignore AIC and CRL.

Basically, AI1 (0-10VDC) is your setpoint on this drive.
As an example, if we have a transducer(4-20ma) 0-100PSi range with setpoint at 50 PSi you will need to set AIC as PI, CRL as 4.0, and adjust AI1 to 5 VDC since 50/100 PSI is same range as 5VDC/10VDC.
