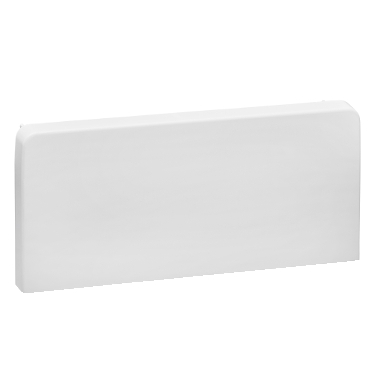

Stop End 120x55

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 70

Product or component type

stop end

Colour tint

polar white (RAL 9003)

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 2

Fixing mode

  • snap-fitted
  • screw
    • Length

      21 mm

      Height

      124 mm

      Width

      56 mm

      Standards

    • 73/23/EEC
    • 93/68/EEC
    • EN 50085-1:2005
    • EN 50085-1:2013/A1
    • EN 50085-2-1:2006
    • NF C 68-102
    • EN 50085-2-1:2011/A1
      • Ambient air temperature for operation

        -25-60 °C

        IP degree of protection

        IP40

        IK degree of protection

        IK07

        REACh Regulation

        Free of Substances of Very High Concern above the threshold

        REACh free of SVHC

        Yes

        EU RoHS Directive

        Pro-active compliance (Product out of EU RoHS legal scope)

        Toxic heavy metal free

        Yes

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

         Pro-active China RoHS declaration (out of China RoHS legal scope)

        Environmental Disclosure

        ENVPEP060310EN

        Material

        Material

        PC/ABS

        Others

        Cabling installation system

        trunking

        Trunking material

        plastic

        Trunking dimension

        120 x 55 mm

        Unit Type of Package 1

        PCE

        Number of Units in Package 1

        1

        Package 1 Weight

        30 g

        Package 1 Height

        0.2 cm

        Package 1 width

        5.6 cm

        Package 1 Length

        12.3 cm

        Unit Type of Package 2

        BAG

        Number of Units in Package 2

        2

        Package 2 Weight

        63 g

        Package 2 Height

        11 cm

        Package 2 width

        0.2 cm

        Package 2 Length

        12 cm

        Unit Type of Package 3

        S03

        Number of Units in Package 3

        150

        Package 3 Weight

        5.26 kg

        Package 3 Height

        30 cm

        Package 3 width

        30 cm

        Package 3 Length

        40 cm
