IsolatOR Addition

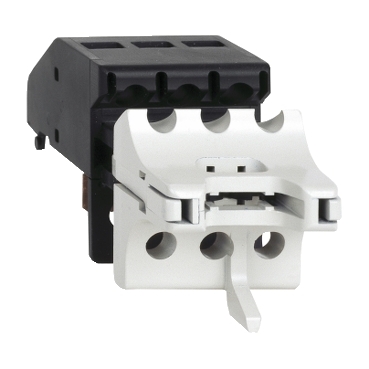

Visible isolation blocks TeSys GV2AK00 for thermal-magnetic circuit-breaker GV2 or GV3

Back to GV2 Accessories Home ... Product Catalogue Industrial Schneider Electric - Electrical Distribution, Automation and Control Power Control and Protection TeSys GV2 TeSys GV2 GV2 Accessories

IsolatOR Addition

Item Number: GV2AK00

Retail

$224.43

RRP (Inc. GST)

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110213331	-

Specifications

Design

Range of product

TeSys GV2

Range

TeSys

Product or component type

visible isolation blocks

Warranty

18 months

Physical

Range compatibility

TeSys GV2 GV2L

TeSys GV2 GV2P

[In] rated current

0.1-25 A

Net weight

0.15 kg

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov

Others

Device short name

GV2AK

Accessory / separate part category

connection accessory

Poles description

Mounting location

top

Compatibility code

GV2AK

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Weight

116 g

Package 1 Height

5.7 cm

Package 1 width

6.1 cm

Package 1 Length

8.8 cm

Unit Type of Package 2

S02

Number of Units in Package 2

Package 2 Weight

4.56 kg

Package 2 Height

15 cm

Package 2 width

30 cm

Package 2 Length

40 cm

WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

EverLink: a strong, long lasting power connection

737.9 KB pdf

Lead your efficiency with TeSys

689.3 KB PDF

Lead your efficiency with TeSys

ZIP

Let TeSys be your drive - Overview of solutions to protect, monitor and control motors

3.4 MB pdf

Let TeSys ensure safety in your simple motor applications (installers selection guide)

ZIP

Let TeSys ensure safety in your simple motor applications (installers selection guide)

1.3 MB PDF

Let TeSys SoLink be your drive!

245.6 KB PDF

Let TeSys watch over your machinery (OEM selection guide)

ZIP

Let TeSys watch over your machinery (OEM selection guide)

2.1 MB PDF

Motor Management Solutions for your industrial process and infrastructure needs

ZIP

Multistandard offer - Brochure

1.4 MB PDF

Multistandard Offer for OEM Applications

1.1 MB PDF

Multistandard offer for OEM applications- single solution source for business without borders

4.5 MB PDF

Multistandard offer for OEM applications- single solution source for business without borders

ZIP

New rotary handles for TeSys GV2, GV3 and TeSys U

322.7 KB PDF

Promotional leaflet - TeSys rotary handle

ZIP

Promotional leaflet - TeSys rotary handle

251.5 KB PDF

Solutions that switch, protect, control, and monitor motors

ZIP

Solutions that switch, protect, control, and monitor motors

2 MB PDF

Telemecanique circuit-breakers TeSys GV2 - GV3 A stronger, safer and long-term connection

1.1 MB PDF

TeSys GV Range eBrochure

ZIP

TeSys motor starters - Promotional leaflet panorama

1.2 MB PDF

TeSys motor starters - Promotional leaflet panorama

ZIP

TeSys Motor Starters and Motor Protection Product Panorama

2.7 MB PDF

TeSys Play your own combination !

4.8 MB PDF

TeSys Play your own combination !

ZIP

Catalog Altivar 32 Variable Speed Drives English 04/2015

4 MB PDF

Digest 178 Catalog 18: Contactors and Starters-IEC

6.8 MB PDF

TeSys - Catalogue 2020 - Innovative and connected solutions for motor starters

ZIP

TeSys catalogue - 2020 - chapter B6 circuit breakers TeSys GV GB

ZIP

TeSys GV Series Manual Motor Starters and Protectors Catalog

10 MB pdf

קטלוג-מחירון הגנות מנועים TeSys

4.8 MB PDF

GV2 P/L Motor circuit-breakers

ZIP

Motor Control Solutions for the North American Market Data Bulletin

2.4 MB PDF

EPDS_TeSysGV_684_EN

591.8 KB ZIP

Frequently Asked Questions

hide show

What is the equivalent of GV2AP01 and GV2AP02 rotary handle

The equivalent of GV2AP01 and GV2AP02 rotary handles are GV2APN01

and GV2APN02 respectively.Refer attached file for more details

Will the Tesys GV2ME starters install into old style enclosures designed for the GV2M, GV2MC01 and GV2MC02 enclosures?

Issue:
GV2ME compatibility with old enclosure

Product Line:
Motor Starters and Protectors

Environment:
TeSys™ GV Manual Starters and Protectors

Resolution:
No, Order new enclosures using the same catalog numbers. The current enclosure has an updated DIN attachement which will accept the Tesys GV2ME starters but will not accept the old GV2M starters.

Is a padlocking device available for the GV2MC** type enclosures?

Issue:
Padlocking device for GV2MC Enclosures

Product Line:
TeSys GV2 Manual Starters and Protectors

Environment:
n/a

Resolution:
Yes, use the GV2V01. When this is padlocked, the starter is automatically in and will remain in the OFF position.

GV2P disconnect options

Issue:
What is the product number for a complete through-the-door disconnect device for a GV2P

Product Line:
GV2P Manual Starters and Protectors

Environment:
US product

Cause:
Digest 176 is unclear as to what is a complete mechanism with shaft and handle

Resolution:
There are three devices which include mechanism, shaft and handle:
GV2APN01 has a NEMA 1, 12 rating and is black
GV2APN02 has a NEMA 1, 12 rating and is red/yellow
GV2APN04 has a NEMA 3R, 4, 4X rating and is red/yellow

What is the part number for the spacer used with the LCD09 through LCD32 Contactor and the GV2AF3 combination block when the GV2 Motor Circuit Protector is mounted on din rail and the contactor hangs below it?

Issue:
Identifying the spacer part number for use with a LC*D, GV2AF3, and GV2 device combination

Product Line:
Contactors and Starters IEC

Environment:
Tesys D contactors and GV manual starters

Cause:
Spacer required

Resolution:
Compensation plate catalog number GV1F03, requires 2 pieces snap together.

How to order GV2MCK04?

Issue:
GV2MCK04 components

Product Line:
Motor Starters and Protectors

Environment:
PowerPact™ Manual Starters

Resolution:
GV2MCK04 is a European reference only. To order in North America, order the two components and assemble in the field.
This consists of part numbers GV2MC01 and GV2K04.
