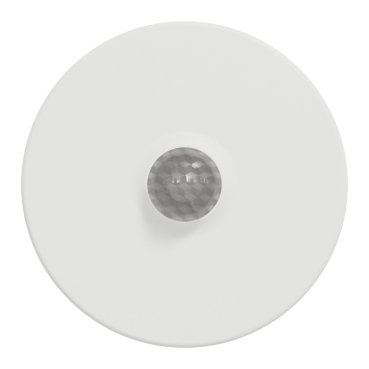

Clipsal Wiser Motion Sensor 3 V DC, IP20

Clipsal Wiser Motion Sensor 3 V DC, IP20

Clipsal Wiser Motion Sensor 3 V DC, IP20

Item Number: CLP595011

Retail
$135.00
RRP (Inc. GST)

The Wiser Motion Sensor detects movement, measures luminance in a room, and reports the status to the Wiser Hub. The threshold of luminance settings and/or detection of movement can be programmed to determine what action to be taken at that moment.

Datasheet

Wiser Technical Catalogue

Download (PDF 2.2MB)

Specifications

Design

Product brand

Clipsal

Range

Wiser

Product or component type

sensor

Device application

monitoring

Colour tint

white

Sustainable offer status

Green Premium product

Physical

Range compatibility

  • Wiser
  • Wiser hub
    • [Ue] rated operational voltage

      3 V

      Supply

      battery 2 x 1.5 V / LR03 AAA

      Communication port protocol

      Zigbee at 2.4 GHz conforming to IEEE 802.15.4

      Movement detection area

    • 5 m of radius (wall) at 90...110° (1.2 m mounting)
    • 2 m of radius (ceiling) at 360° (2.5 m mounting)
      • Width

        26.6 mm

        Standards

      • IEC 60669-2-5
      • EN 60669-2-5
        • Product certifications

        • CE
        • Zigbee 3.0
          • IP degree of protection

            IP20

            Relative humidity

            10-95 %

            Ambient air temperature for operation

            -10-50 °C

            REACh Regulation

            Reference contains Substances of Very High Concern above the threshold

            REACh free of SVHC

            Yes

            EU RoHS Directive

            Compliant

            Mercury free

            Yes

            RoHS exemption information

            Yes

            China RoHS Regulation

            X

            Environmental Disclosure

            ENVPEP1804009EN

            Circularity Profile

            ENVEOLI1804009EN

            Others

            Product name

            Wiser motion sensor

            Battery life

            5 year(s)

            Diameter

            70.8 mm

            Operating altitude

            <= 2000 m
            Show all specifications

            Documents & downloads

            hide show
            Filter items
            • All

            • Installation Instruction

            • Operating Manuals

            • Certificates (MSDS)

            Frequently Asked Questions

            hide show

            Why does the temperature in the device control page display in Celsius when the temperature is set to Fahrenheit in App settings?

            The App settings and device control page are managed separately. The Temperature Scale option in App settings controls the weather temperature display on the home page. To set the temperature scale for a device, choose this option in the device control page.

             Note: Not all devices support the option to set the temperature scale.


            What can I do if the status of the window/door sensor is not sync’d with the physical status in the App?

            Position as such so that there are not too many walls between the window/door sensor and so it is near to a mains powered device (ie a dimmer) or gateway.
            Take care that there are no metal plates in the line of sight between the window/door sensor and the nearest mains powered device or gateway
            The window/door sensor should be installed in that way, that the front of the sensor part is directed towards a nearby mains powered device or gateway.
            The distance between the window/door sensor and the nearest mains powered device or gateway should be as short as possible when the window or door is closed.
            Be aware, that the distance between the sensor part and magnet part could be up to 34mm to indicate "OPEN" depending on the material that the window/door sensor is installed on. It is recommended to perform some tests before you fix the final installation.
            Wiser motion sensor and app

            Features

            • Detects movement, measures luminance in a room, and reports the status to the Wiser Hub
            • Controls Wiser devices to configure the room for a desired effect
            • Threshold of luminance settings and/or detection of movement can be programmed to determine what and when action to be taken
            • Surface-mounting, with screws or adhesive pads, on a ceiling or a wall
            • Up to 360 degree detection
            • IP20
            • Battery powered
            Wiser products in kitchen

            Range

            A Clipsal Wiser Smart Home enables you to personalise your home to fit your needs and manage it with one simple app. It’s a simple solution that can be easily integrated into any home, old or new.

            All Wiser Smart Home products are also compatible with most of Clipsal’s existing wiring devices, including the Iconic switch range, making design and function upgrades simple and seamless.

            With Google Home or Amazon Echo, you can also control your Clipsal Wiser Smart Home with voice commands.

            With a Clipsal Wiser Smart Home, you can take control of your home the way that it suits you.
