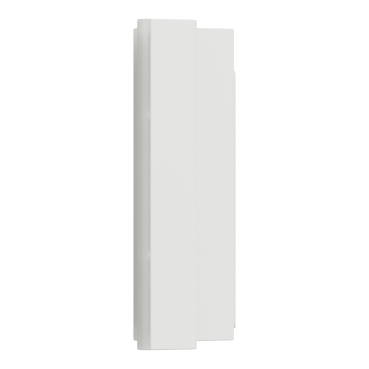

Clipsal Wiser Window/Door Smart Sensor White

Clipsal Wiser Window/Door Smart Sensor White

Clipsal Wiser Window/Door Smart Sensor White

Item Number: CLP591011

The Wiser Window/Door Smart Sensor detects opened and closed windows and doors, and reports the status to theWiser Hub. When the sensor is connected to the Wiser Hub and the window/door is opened or closed, the sensor reports the change to the Wiser Hub.

Datasheet

Wiser Technical Catalogue

Download (PDF 7.4MB)

Specifications

Design

Device application

building automation systems

Sustainable offer status

Green Premium product

Product brand

Clipsal

Range

Wiser

Product or component type

window/door contact

Colour tint

white

Physical

[Ue] rated operational voltage

3 V

Communication port protocol

Zigbee at 2.4 GHz conforming to IEEE 802.15.4

Operating distance

  • < 18="" mm="" on="" wood="" and="" plastic="">
  • < 10="" mm="" on="" metallic="">

Standards

  • IEC 60669-2-5
  • EN 60669-2-5

Product certifications

  • CE
  • Zigbee 3.0

IP degree of protection

IP20

Relative humidity

10...95 %

Ambient air temperature for operation

-10...50 °C

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

Environmental Disclosure

ENVPEP1804008EN

Circularity Profile

ENVEOLI1804008EN

Range compatibility

  • Wiser
  • Wiser hub

Supply

battery / CR2450

Material

Device composition

  • sensor 50 mm x 33 mm x 16.3 mm
  • magnet 50 mm x 9 mm x 9 mm

Others

Battery life

5 year(s)

Duty cycle

48/day

Operating altitude

<= 2000="">

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

84.0 g

Package 1 Height

7.5 cm

Package 1 width

5.2 cm

Package 1 Length

7.5 cm

Unit Type of Package 2

S02

Number of Units in Package 2

40

Package 2 Weight

3.675 kg

Package 2 Height

15 cm

Package 2 width

30 cm

Package 2 Length

40 cm

Unit Type of Package 3

P06

Number of Units in Package 3

640

Package 3 Weight

67.3 kg

Package 3 Height

75 cm

Package 3 width

60 cm

Package 3 Length

80 cm

Product name

Wiser window/door sensor
Show all specifications

Documents & downloads

hide show

Frequently Asked Questions

hide show

Can I trigger a moment/scene from a Wiser wall switch?

Yes. When a number of Wiser switches/dimmers are paired with the Wiser Hub, this can be achieved with the use of an Automation and would consist of - Condition: Device status = On, Action = Enable or Disable Automation/Trigger Moment, Delay 1s, Run the device = Off.


Note: Only 1 moment can be used within an automation

What can I do if the status of the window/door sensor is not sync’d with the physical status in the Wiser by SE App?

Position as such so that there are not too many walls between the window/door sensor and so it is near to a mains powered device (ie a dimmer) or gateway.
Take care that there are no metal plates in the line of sight between the window/door sensor and the nearest mains powered device or gateway
The window/door sensor should be installed in that way, that the front of the sensor part is directed towards a nearby mains powered device or gateway.
The distance between the window/door sensor and the nearest mains powered device or gateway should be as short as possible when the window or door is closed.
Be aware, that the distance between the sensor part and magnet part could be up to 34mm to indicate "OPEN" depending on the material that the window/door sensor is installed on. It is recommended to perform some tests before you fix the final installation.

Wiser Product Warranty

The Hub, IR converter and all Sensors have a warranty of 12 months.
The 2AX (41E2PBSWM), 10AX (41E10PBSWM), Dimmer (41EPBDWCLM), Micro module dimmer (CLP5010WDZ), Micro module switch (CLP5011WSZ), Micro module blinds (CLP5015WBZ) and the Connected Socket Outlet (3025CSG) all have a 2-year warranty.
This information can be found on the product installation instructions.

Wiser Window/ Door Sensor Features on Door

Features

  • Detects opened and closed windows and doors, and reports the status to the Wiser Hub
  • When the sensor is connected to the Wiser Hub and the window/door is opened or closed, the sensor reports the change to the Wiser Hub to trigger devices or  a notiofication.
  • Install on  window and door frames, with screws or adhesive pads
  • Operating voltage 3 V DC (battery powered)
  • IP20
Wiser products in kitchen

Range

A Clipsal Wiser Smart Home enables you to personalise your home to fit your needs and manage it with one simple app. It’s a simple solution that can be easily integrated into any home, old or new.

All Wiser Smart Home products are also compatible with most of Clipsal’s existing wiring devices, including the Iconic switch range, making design and function upgrades simple and seamless.

With Google Home or Amazon Echo, you can also control your Clipsal Wiser Smart Home with voice commands.

With a Clipsal Wiser Smart Home, you can take control of your home the way that it suits you.
