Clipsal Wiser Micro Module Smart Blind Controller Grey

Clipsal Wiser Micro Module Smart Blind Controller Grey

Clipsal Wiser Micro Module Smart Blind Controller Grey

Item Number: CLP5015WBZ

The Wiser Micro Module Smart Blind Controller provides smart control of 240V twin active blinds and shutter motors. . It transforms a conventional double push-button switch into a connected device you can control from the switch or through the Wiser by SE app.

Datasheet

Product Dimensions

Width icon

Width43 mm

Height icon

Height43 mm

Embedding depth icon

Embedding depth70 mm

Wiser Technical Catalogue

Download (PDF 7.4MB)

Specifications

Design

Product brand

Clipsal

Range

Iconic

Product or component type

connected shutter control

Device application

blind actuator

Colour tint

grey

Sustainable offer status

Green Premium product

Physical

Range compatibility

  • Wiser hub
  • Clipsal Iconic push-button
  • Pro Series push-button
  • Saturn Series 4000 push-button
  • Impress Series 30 push-button

Device presentation

module

Load type

motor: 500 W at 230 V AC

[Ue] rated operational voltage

220...240 V AC 50 Hz

Rated current

4 A

Protection type

circuit breaker 16 A

Control type

  • push-button
  • by mobile application

Communication network type

wireless Zigbee (2.4-2.4 GHz), 10 mW

Wiring configuration

3 wires with neutral

Connections - terminals

screw terminal

Clamping connection capacity

  • 1 x 1.5...2 x 2.5 mm² for solid cable(s)
  • 1 x 1.5...2 x 2.5 mm² for stranded cable(s)

Mounting support

  • installation box
  • wall

Type of installation

indoor installation

Ambient air temperature for operation

0...35 °C

IP degree of protection

IP20

Relative humidity

5...90 % non-condensing

Embedding depth

70 mm

Depth

22 mm

Width

43 mm

Height

43 mm

Product certifications

Zigbee 3.0

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

China RoHS Regulation

X

RoHS exemption information

Yes

Environmental Disclosure

ENVPEP1706004EN

Circularity Profile

ENVEOLI1706004EN

Others

Package 1 Bare Product Quantity

1

Technology type

electronic

Switch additional information

mechanical and electrical interlock between up/down

Cos phi

0.6...1

Standby consumption

max. 0.4 W

Software name

Wiser by SE App

Cable length

NYM cable: 50 m

System requirements

  • Android 5.1 or higher Wiser App
  • Apple iOS 10.3 or higher Wiser App
  • Bluetooth 4.1 or higher Bluetooth
  • Wiser Home Touch Wiser Home control

Connected auxiliaries

maximum 10 auxiliary push-buttons

Tightening torque

0.5 N.m

Main colour tint

grey

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.2 cm

Package 1 Width

7.5 cm

Package 1 Length

7.5 cm

Package 1 Weight

76.0 g

Unit Type of Package 2

S02

Number of Units in Package 2

40

Package 2 Height

15.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

3.52 kg

Unit Type of Package 3

P06

Number of Units in Package 3

640

Package 3 Height

75.0 cm

Package 3 Width

60.0 cm

Package 3 Length

80.0 cm

Package 3 Weight

71.32 kg
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • Technical Data Catalogues

  • Technical leaflet

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • System User Guide

  • Operating Manuals

  • Certificates (MSDS)

Frequently Asked Questions

hide show

Where can I find the files and how to update the firmware on my Zigbee Wiser devices when I don’t have the Wiser Hub?

Firmware for the Wiser devices is updated via the Wiser by SE app and is done via the mode of connection. If your device is connected in Bluetooth in Wiser by SE, you will have access to Bluetooth firmware updates and if your Wiser device is connected in Zigbee via the Wiser Hub to Wiser by SE, you will have access to Zigbee firmware updates.
Without the Wiser Hub you will be unable to connect Wiser devices via Zigbee in Wiser by SE and therefore will be unable to update your devices.
We do not offer any other methods for updating firmware on the devices.


My Wiser switches are not responding to being pressed or control via Wiser by SE, what can I do to troubleshoot the issue?

Begin by taking note of the product/s that are not responding and are they doing anything else different from normal operation? For example, is the backlight flashing in a sequence, does the product respond to three presses and shows the pairing led colouring and what colours are seen. If what is suggested below does not resolve the switches not responding these details can assist the Tech Support team in diagnosing what is occurring.

Once this has been taken note of begin by power cycling your Wiser Hub. This can be done by removing the micro-USB where it connects to the Hub or by turning off the power outlet that supplies power to the Hub. Leave it off for 10 – 15 seconds and then reconnect the Wiser Hub and wait until it completes its reboot procedure at the end of which only 2 LED indicators should be visible on the Wiser Hub. With LEDs at top of Hub - if connected with Ethernet cable (Right and Left Led will turn ON). If connect via WiFi (Middle and Right Led will turn ON)

If this fails to resolve the issue the product failing to respond may need to be power cycled itself. If confidant and able, access the switchboard that has the RCBO’s or Circuit breakers that supply power to the products. Turn the applicable supply off for 10 – 15 seconds and then turn this supply back on.

Note: If uncertain contact your installing electrician for the Wiser system who may advise what is supplying power to the Wiser products. If fuses are installed in your switchboard it is recommended to have your electrician remove the fuse and then re-fit after 10 – 15 seconds. Fuses can be extremely dangerous if not correctly handled by a qualified electrician.

If the switches are still unresponsive contact Tech Support via phone – Australia: 13 73 28 (13 SEAU) New Zealand 0800 652 999, email - techsupport.pz@se.com or via online chat through a link on our support page https://www.clipsal.com/clipsal-support/contact-us or https://www.pdl.co.nz/support


Can I trigger a moment/scene from a Wiser wall switch?

Yes. When a number of Wiser switches/dimmers are paired with the Wiser Hub, this can be achieved with the use of an Automation and would consist of - Condition: Device status = On, Action = Enable or Disable Automation/Trigger Moment, Delay 1s, Run the device = Off.


Note: Only 1 moment can be used within an automation

How do I swap my Wiser connected switch and dimmer devices from BLE to Zigbee?

To swap from Bluetooth to Zigbee you will need to short press the mechanism 12 times - and allow time for the device to swap modes, this will take roughly 40 seconds. Initially when swapped to Zigbee mode the LED indicator on the mechanism will flash amber indicating it is in pairing mode. If not paired to after roughly 50 seconds this will become solid amber. This amber indicator will remain on until paired with a Hub, the mechanism will function as normal while this indicator is on.

NOTE: Before swapping from Bluetooth/BLE to Zigbee it is strongly recommended that a factory reset be performed on the mechanism before initiating the change.


In the Wiser by SE App, why is my device/s (BLE/Zigbee) greyed out?

Check if you have changed the device/s from BLE to Zigbee mode. Once the mode is changed, the device will lose connection and require manual deletion.

Zigbee – Check that your router, device and Hub are powered. If you are not connected to the local WiFi associated with the Hub you will also need to check if your router and hub are still connected to the internet.

BLE – Check if you are in range of the device and does the device still have power


Why is my open/close percentage of my blind module in the Wiser by SE App not the same as how open/closed my real blind is?

Remove and restore the device to its factory default settings by using the Edit/Pencil icon on the top right of the Blind Controller’s Control panel in Wiser by SE App. After the device is removed, commission the device again by following the instructions in the App to add a device and the UI sync issue should no longer be an issue. Ensure to set the run time in the Blind Controller settings to match the run time needed for the blind/shutter to fully open or close.


Show More

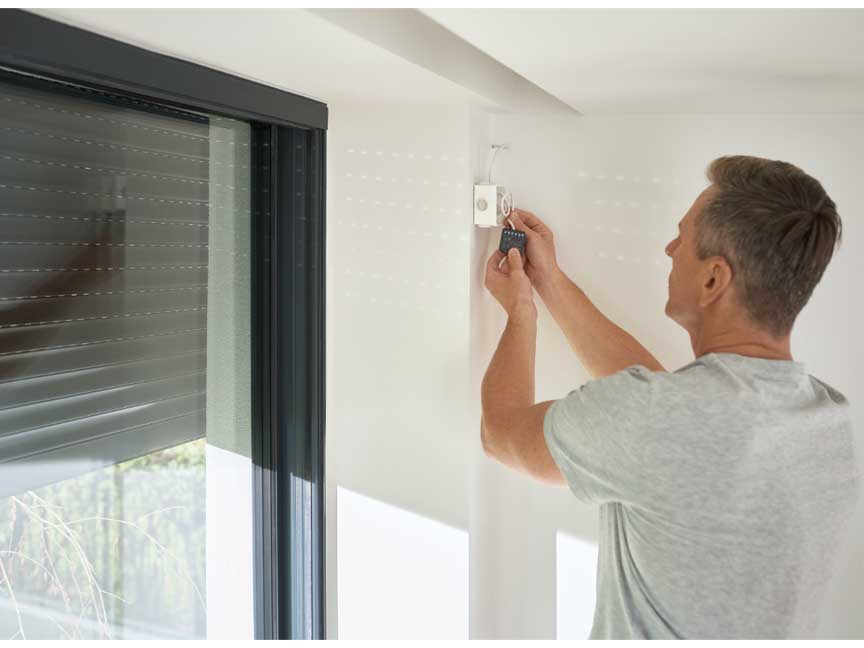

Installing Wiser Micro Module Blind Controller
