Clipsal - Lighting, Downlight LED, 750lm, 3K/4K/6K Trim, 10 Pack

Back to TPDL1C2 Series Home LED TPDL1C2 Series

Clipsal - Lighting, Downlight LED, 750lm, 3K/4K/6K Trim, 10 Pack

Clipsal - Lighting, Downlight LED, 750lm, 3K/4K/6K Trim, 10 Pack

Item Number: CLITPDL1C2B10

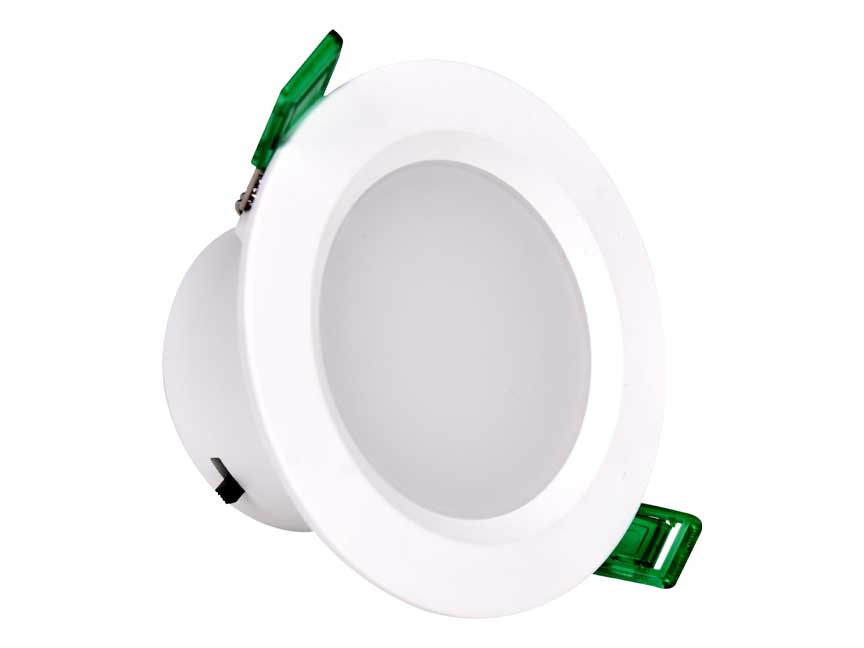

With an extra-wide trim, integral driver, a low profile and flex and plug, the Clipsal TPDL Series LED Downlights are unobtrusive and easy to install. The lamp life is rated to 30,000 hours. This white surround model has a brightness level of 750lm and is supplied in a pack of 10.

Where To Buy

Datasheet

Download

Product Dimensions

Width icon

Width110 mm

Height icon

Height65.5 mm

Depth icon

Depth62.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all
LED downlight specifications
LED Downlight
LED downlight in house
LED downlight specifications
LED Downlight
LED downlight in house

Features

  • Frosted recessed lens allows this series to achieve the optimum lighting effect, while also providing the subtle, minimal look downlights provide.
  • Perfect for general illumination in residential or small commercial buildings
  • 3000K, 4000K and 6000K selectable lamp temperature options
  • The warmer 3000k output is perfect for areas that experience high traffic, while the cooler
  • 4000k and 6000K output versions are great for working environments that require maximum illumination

Features

  • 30,000 hours rated lamp life to L70
  • 90˚ beam spread
  • Integral driver
  • Wide trim
  • 90mm cut-out

Features

  • IP44 rating
  • Unobtrusive and easy to install
  • Supplied with flex and plug
  • 3-year warranty

Specifications

Design

Range

Clipsal

Product or component type

downlight

Device application

lighting

Market segment

  • residential
  • small commercial

Physical

Device mounting

recessed ceiling

Type of installation

indoor

Rated power in W

9 W

[Ue] rated operational voltage

240 V AC 50 Hz

Load type

dimmable LED

Quantity per set

10

Width

110 mm

Height

65.5 mm

Depth

62.5 mm

Net weight

0.25 kg

IP degree of protection

IP44

Ambient air temperature for operation

-10...25 °C

Relative humidity

non-condensing

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

Material

Device composition

  • round white plastic fixed integral dimming driver soft glow
  • flex
  • plug

Others

Package 1 Bare Product Quantity

1

Shape

round

Light source

LED

Luminous flux

  • 700 lm 3000 K
  • 4000 K
  • 6000 K

Colour rendering index

Ra=80

Bulb lifespan

50000 h

Beam angle

90 °

Cut-out dimensions

90 mm

Targeted country

  • Australia
  • New Zealand

Insulation contact rating

IC-4

Unified glare rating

<>

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

20.5 cm

Package 1 Width

25.5 cm

Package 1 Length

42.0 cm

Package 1 Weight

3.5 kg

Unit Type of Package 2

CAR

Number of Units in Package 2

4

Package 2 Height

42.2 cm

Package 2 Width

44.0 cm

Package 2 Length

52.8 cm

Package 2 Weight

13.308 kg
Show all specifications
Lighting outside house

Range

The Clipsal lighting range provides energy-saving light fittings that combine clever design with innovative technologies. Lighting is interlinked and must be able to operate seamlessly with the multiple input demands it receives across multiple products.
With the convergence of control and lighting, Clipsal can deliver products whilst leading the market.
Clipsal provides light fittings that are truly compatible with our wall switches, dimmers, sensors, control systems and more.
