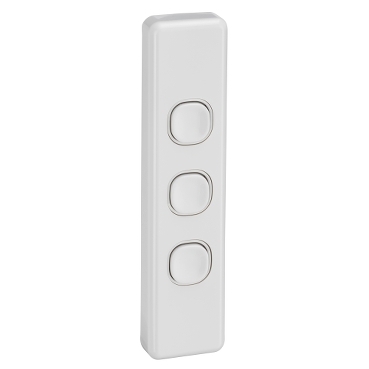

Push Button 3 Gang Architrave Switch Impress

White Electric | Push Button 3 Gang Architrave Switch Impress

Push Button 3 Gang Architrave Switch Impress

Item Number: C2033APB-WE

Retail
N/A
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • Impress
  • Classic C2000 Series
    • Product or component type

      push-button

      Product brand

      Clipsal

      Physical

      Device presentation

      basic element with full cover plate

      Actuator

      push-button

      Local signalling

      without light indicator

      Fixing mode

      by screws

      [Ue] rated operational voltage

      250 V AC

      Inrush current

      20 A

      Depth

      30 mm

      Width

      35 mm

      Length

      141 mm

      Fixing center

      122 mm

      Mounting position

      vertical

      Material

      Material

      plastic

      Others

      Package 1 Height

      30 mm

      Package 1 Length

      141 mm

      Package 1 width

      35 mm

      Package 1 Weight

      0.07 kg
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • CAD Files and Packs

      • Certificates (MSDS)

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      What is the part number for a mounting block to suit a C2033A?

      Unfortunately there is no mounting block for this product.

      What is the cover for a C2033CC1?

      The cover for a C2033CC1 is a C2033CCXC-BA.



      What parts make up the SC2032VAPB?

      The SC2032VAPB is made up of an SC2032VH and 2 x 30PBs.

      For more information, please refer to the link:
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=30PB

      Can I purchase a replacement mechanism for the 2033CC & C2033CC credit card switches?

      Yes, a 2036VC-4-WE  16A mechanism would suit the 2033CC & C2033CC ving card switches.

      For further information please visit https://www.clipsal.com/Trade/search-results?q=2036VC-4-WE.

      Can i get a brushed aluminium cover plate for a C2032A?

      Yes,you can get a brushed aluminium cover plate for a 2 gang architrave switch. The part number is C2002C-BA.

      What is the part number for a 4 gang cover in the Classic, Brushed Aluminium, series for an architrave switch?

      The part number for a 4 gang cover in the Classic, Brushed Aluminium, series for an architrave switch is the C2004C-BA.

      For more information, please refer to the link:
      https://www.clipsal.com/Trade/search-results?q=C2004C
