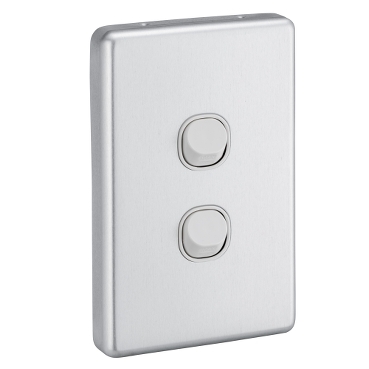

Flush Switch, 2 Gang, 250VAC, 10A, Classic C2000 Series, Vertical

Brushed Aluminium | Flush Switch, 2 Gang, 250VAC, 10A, Classic C2000 Series, Vertical

Flush Switch, 2 Gang, 250VAC, 10A, Classic C2000 Series, Vertical

Item Number: C2032VAWEGD-BA

Retail
N/A
RRP (Inc. GST)
Colour Brushed Aluminium (BA)
  • Brushed Aluminium 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Classic Series C2000

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element with full cover plate and grid

Switch function

1-pole

Actuator

rocker

Number of rocker

2

Number of poles

1

Device mounting

flush

Fixing mode

by screws

Local signalling

without

[Ue] rated operational voltage

250 V AC

Rated current

  • 10 A
  • 8 AX, fluorescent lamp
    • Marking

      without marking

      Standards

      AS/NZS 3080-96

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120506EN

      Others

      Package 1 Weight

      0.092 kg
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • CAD Files and Packs

      • Product Brochures

      • Product Data Sheets

      • Technical Leaflet

      • Specifications

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      What mounting block suits the C2031VA-WE?

      The suitable mounting block is the 449A-WE.
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=449A


      What is a large 2 gang switch that can be used for rest homes?

      P2032VA-WE Prestige - found on Clipsal.com

      What is the part number for the cover of the C2032 white

        C2032C-WE

      Can i get a brushed aluminium cover plate for a C2032A?

      Yes,you can get a brushed aluminium cover plate for a 2 gang architrave switch. The part number is C2002C-BA.

      What is the Alternative for the permanent connection unit C2032VTB-BK

      The alternative would be to use the following parts C2032VH-BK + 30M-BK + 30TB-B

      What parts make up the SC2032VAPB?

      The SC2032VAPB is made up of an SC2032VH and 2 x 30PBs.

      For more information, please refer to the link:
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=30PB
