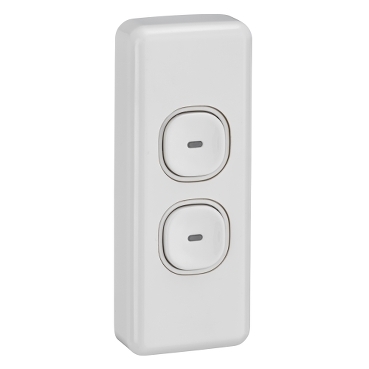

Push Button LED 2 Gang Architrave Switch Impress

White Electric | Push Button LED 2 Gang Architrave Switch Impress

Push Button LED 2 Gang Architrave Switch Impress

Item Number: C2032APBL-WE

Retail
N/A
RRP (Inc. GST)
Colour White Electric (WE)
  • White Electric 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • Classic C2000 Series
  • Impress
    • Product or component type

      push-button

      Product brand

      Clipsal

      Sustainable offer status

      Green Premium product

      Physical

      Device presentation

      basic element with full cover plate

      Actuator

      push-button

      Local signalling

      indicator light

      Fixing mode

      by screws

      [Ue] rated operational voltage

      250 V AC

      Inrush current

      20 A

      Depth

      30 mm

      Width

      34 mm

      Length

      86 mm

      Fixing center

      70 mm

      Mounting position

      vertical

      REACh free of SVHC

      Yes

      EU RoHS Directive

      Compliant

      Toxic heavy metal free

      Yes

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

       Pro-active China RoHS declaration (out of China RoHS legal scope)

      Environmental Disclosure

      ENVPEP111024EN

      Circularity Profile

      ENVEOLI110713EN

      Material

      Material

      plastic

      Others

      Unit Type of Package 1

      PCE

      Number of Units in Package 1

      1

      Package 1 Weight

      0.07 kg

      Package 1 Height

      30 mm

      Package 1 width

      34 mm

      Package 1 Length

      86 mm
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • CAD Files and Packs

      • Certificates (MSDS)

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      What parts make up the SC2032VAPB?

      The SC2032VAPB is made up of an SC2032VH and 2 x 30PBs.

      For more information, please refer to the link:
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=30PB

      Can i get a brushed aluminium cover plate for a C2032A?

      Yes,you can get a brushed aluminium cover plate for a 2 gang architrave switch. The part number is C2002C-BA.

      What is the cover plate for the C2032VTB?

      The cover plate is a standard 2 gang cover plate, C2032C-xx

      What is the Brushed Aluminum cover plate for the C2031VH

       Part code C2031C-BA

      What is the part number for the cover of the C2032 white

        C2032C-WE

      Is there a blank architrave switch plate?

      Unfortunately we do not do a blank architrave. You can create one using the 30P and a C2031.
