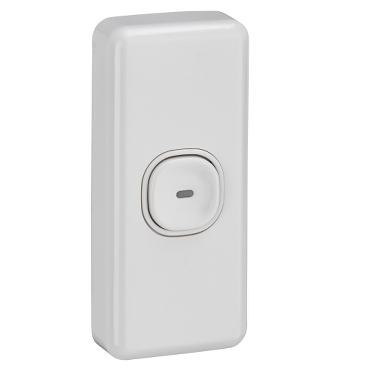

Push Button LED 1 Gang Architrave Switch Impress

White Electric | Push Button LED 1 Gang Architrave Switch Impress

Push Button LED 1 Gang Architrave Switch Impress

Item Number: C2030PBL-WE

Retail
N/A
RRP (Inc. GST)
Colour White Electric (WE)
  • White Electric 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • Classic C2000 Series
  • Impress
    • Product or component type

      push-button

      Product brand

      Clipsal

      Sustainable offer status

      Green Premium product

      Physical

      Device presentation

      basic element with full cover plate

      Actuator

      push-button

      Local signalling

      indicator light

      Fixing mode

      by screws

      [Ue] rated operational voltage

      250 V AC

      Inrush current

      20 A

      Depth

      30 mm

      Width

      32 mm

      Length

      75 mm

      Fixing center

      55 mm

      Mounting position

      vertical

      REACh free of SVHC

      Yes

      EU RoHS Directive

      Compliant

      Toxic heavy metal free

      Yes

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

       Pro-active China RoHS declaration (out of China RoHS legal scope)

      Environmental Disclosure

      ENVPEP111024EN

      Circularity Profile

      ENVEOLI110713EN

      Material

      Material

      plastic

      Others

      Unit Type of Package 1

      PCE

      Number of Units in Package 1

      1

      Package 1 Weight

      0.07 kg

      Package 1 Height

      30 mm

      Package 1 width

      32 mm

      Package 1 Length

      75 mm
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • CAD Files and Packs

      • Technical Leaflet

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      What is the part name for an architrave, single gang switch and blank plate in brown?

      The part names are as follows: C2030-BR, a C2031-BR and a 30P-BR.

      What colour grid is supplied in a C2030-BA, 1 gang architrave C2000 switch with brushed aluminium cover?

      C2030-BA is supplied with a soft grey grid and Brushed Aluminium (BA) cover.
      For further information please visit
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=C2030
      User-added image


      What is part number for label sheets to suit C2000 series?

      These are part numbers that can be used

      C2000A4L (non adhesive)

      SC2000A4L (adhesive) these can be used with C2000

      What is the part no for the C2000 series paint protection covers?

      The part no is C2000PP/50 > pack of 50
      or C2000PP > pack of 250

      This is the link to the page https://www.clipsal.com/Trade/Products/ProductDetail?catno=C2000PP

      User-added image

      Will the 2000pp fit the C2000 series?

      No, unfortunately you will need to use a C2000PP paint protector.

      For further information please visit www.clipsal.com/Trade/Products/ProductDetail?catno=C2000PP
