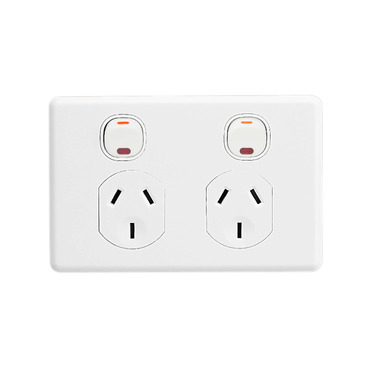

Twin Switch Socket Outlet, Classic, 250V, 10A, 2 Pole, Neon

White Electric | Twin Switch Socket Outlet, Classic, 250V, 10A, 2 Pole, Neon

Twin Switch Socket Outlet, Classic, 250V, 10A, 2 Pole, Neon

Item Number: C2025DN-WE

Retail
$212.74
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Classic Series C2000

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

  • switch
  • rocker
    • Mounting position

      horizontal

      Fixing mode

      by screws

      Local signalling

      indicator light

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      10 A

      Depth

      28 mm

      Length

      116 mm

      Width

      76 mm

      Fixing center

      84 mm

      Standards

      AS/NZS 3112

      REACh Regulation

      Reference contains Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120506EN

      Material

      Material

      plastic

      Others

      Package 1 Height

      28 mm

      Package 1 Length

      116 mm

      Package 1 width

      76 mm

      Package 1 Weight

      0.112 kg
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • CAD Files and Packs

      • Product Brochures

      • Technical Leaflet

      • Specifications

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      What is cover to suit C2025X?

      The part number for cover is C2025C.

      Do you have a double powerpoint in the Classic Series C2025 with neons on the switches?

      Yes the part number is C2025DN. However it is double pole and has shutters. Alternatively we have a C2025N which has the Neon's next to the switch.

      Do you do a cover for the C2025D?

      Yes, there is a cover for the C2025D. The part number is C2025DC.

      Some of the key features are:
      • Standard size
      • 2 Pole
      • Identification cover
      • For twin switched socket
      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=C2025DC





      What would be the part number for a double pole power point with neon indicator?

      This part is available in standard series part number 25DN (only available in white) 2000 series - 2025DN (available in red and white) and classic series C2025DN (available in red and white).

      Please see following link for more information for Installations and product information.

      https://www.clipsal.com/Trade/search-results?q=25DN
      https://www.clipsal.com/Trade/search-results?q=2025dn
      https://www.clipsal.com/Trade/search-results?q=C2025DN



      What is replacement cover for C2025V?

      The replacement cover for C2025V is C2025VC2.

      Will a C2025C spare cover fit on a C2025QC double power point?

      No, unfortunately a C2025C will only suit a C2025 outlet.

      The spare cover for a C2025QC is a C2025QCC.

      'QC' Stands for Quick Connect.

      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=C2025QCC


      Show More
