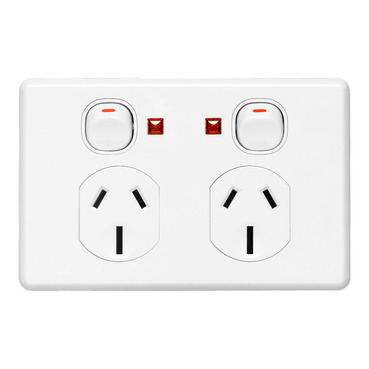

Switched Socket Twin 15A Indicator

White Electric | Switched Socket Twin 15A Indicator

Switched Socket Twin 15A Indicator

Item Number: C2025/15N-WE

Retail
$238.82
RRP (Inc. GST)
Colour White Electric (WE)
  • White Electric 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Classic Series C2000

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

  • rocker
  • switch
    • Mounting position

      horizontal

      Fixing mode

      by screws

      Local signalling

      indicator light

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      15 A

      Depth

      28 mm

      Length

      116 mm

      Width

      76 mm

      Fixing center

      84 mm

      Standards

      AS/NZS 3112

      REACh Regulation

      Reference contains Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120506EN

      Material

      Material

      plastic

      Others

      Package 1 Weight

      0.001 kg

      Package 1 Height

      28 mm

      Package 1 width

      76 mm

      Package 1 Length

      116 mm
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • CAD Files and Packs

      • Product Brochures

      • Technical Leaflet

      • Specifications

      • Certificates (MSDS)

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      What is part number for cover to suit C2015/15?

      Part number for cover to suit is C2015C.

      for more information on this part please refer to https://www.clipsal.com/Trade/Products/ProductDetail?catno=C2015C


      User-added image

      Does the C2025D15 have separate feeds for each side ?

      No - 1 feed for both.

      For more information on this range please visit the Clipsal.com web site on the link provided
      https://www.clipsal.com/Trade/search-results?q=c2025d15

      What is the part number for a single switched socket, 15A with extra switch?

      C2015/15X is the part number for a single switched socket, 15A with the extra switch.
      For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=C2015/15X



      Does Clipsal have a 15 amp GPO with an extra switch?

      Yes, we have the C2015/15X from the Classic range.

      For more information, please refer to the link:
      https://www.clipsal.com/Trade/search-results?q=c2015/15X

      Is there a C2015 in 15A with extra switch?

      Yes the part number for a C2015/15X.

      Is there a 15A Surge protected outlet?


      To obtain a surge protected 15A outlet you will need to purchase a C2015/15X and a 30SFM and replace the extra switch in the outlet with the 30SFM surge protector mechanism and then wire accordingly.
      For some reason we have given the 30CSFM a 10A rating. The mechanism only needs to be rated for the correct voltage and correct fault current the amperage rating is irrelevant as this device does not have the load passing through it, it is there merely for fault conditions.
