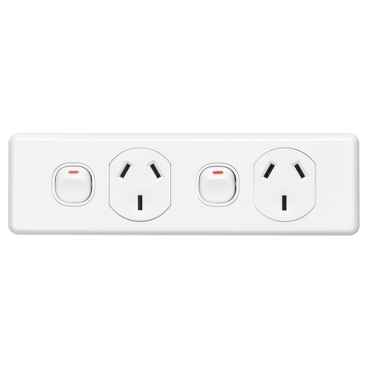

Twin Switch Socket Outlet, Classic, 250V, 10A, Skirt Mount, 2 Pole

White Electric | Twin Switch Socket Outlet, Classic, 250V, 10A, Skirt Mount, 2 Pole

Twin Switch Socket Outlet, Classic, 250V, 10A, Skirt Mount, 2 Pole

Item Number: C2016/2D-WE

Retail
$143.58
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Sustainable offer status

Green Premium product

Product brand

Clipsal

Range of product

Classic Series C2000

Surface finish

glossy

Physical

Environmental Disclosure

ENVPEP120506EN

Mercury free

Yes

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

EU RoHS Directive

Compliant

RoHS exemption information

Yes

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

  • rocker
  • switch
    • Mounting position

      horizontal

      Fixing mode

      by screws

      Local signalling

      without light indicator

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      10 A

      Depth

      28 mm

      Length

      116 mm

      Width

      76 mm

      Fixing center

      84 mm

      Standards

      AS/NZS 3080-96

      Material

      Material

      plastic

      Others

      Number of Units in Package 1

      1

      Package 1 Height

      55 mm

      Package 1 Length

      160 mm

      Package 1 Weight

      133.3 g

      Package 1 width

      47 mm

      Unit Type of Package 1

      PCE

      Distance between centers

      145 mm
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • CAD Files and Packs

      • Technical Leaflet

      • Specifications

      • Certificates (MSDS)

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      What is the cut out for the C2016/2?

      The cut out for the C2016/2 is 30mm (H) X 200mm (W).

      What are the dimensions for part number C2016/2?

      The dimensions for part number C2016/2 are:
      159mm (L)  47mm (H) 28mm (D)

      What is the mounting centres for part number C2016/2?

      Mounting centres for part number C2016/2 are 122mm.

      Is the dimensions for a Clipsal C2016/2-WE the same as C2016/2S

       No, the C2000 is 48mm x 160mm x 28mm  with 122 mounting centres

      What are the measurements for a C2016/2?

      The measurements for the C2016/2 are 48mm (H) x 160mm (W) x 28mm (D) with a mounting centre of 122mm

      What is the cover for a C2015/20?

      The cover for a C2015/20 is a C2015/20C.
