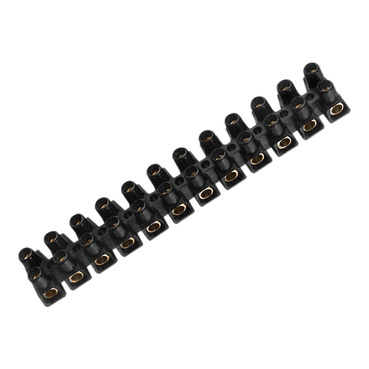

Max 4 Strip Connectors, 15A, Plastic Medium Duty, 12 Terminal Available Bk Or Tr

Back to Strip Connectors Home MAX4 Link Bars Strip Connectors

Max 4 Strip Connectors, 15A, Plastic Medium Duty, 12 Terminal Available Bk Or Tr

Max 4 Strip Connectors, 15A, Plastic Medium Duty, 12 Terminal Available Bk Or Tr

Item Number: BP543

Retail
$33.61
RRP (Inc. GST)
Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Product brand

Clipsal

Range of product

Blue Point

Physical

[In] rated current

15 A

Connector type

  • 1 screw terminals
  • 2 screw terminals

      • Number of poles

      12

      Mounting support

      panel

      Width

      23 mm grid pattern:

      Length

      133 mm

      Ambient air temperature for operation

      100 °C

      Standards

      CS/840/N

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP121019EN

      Material

      Material

      flameproof high-impact polystyrene: insulation

      Others

      Cable cross section

      6-6 mm² fine stranded without cable end sleeve

      Minimum mounting height

      19 mm

      Unit Type of Package 1

      PCE

      Number of Units in Package 1

      1

      Package 1 Weight

      55 g

      Package 1 Height

      20 mm

      Package 1 width

      23 mm

      Package 1 Length

      140 mm
      Show all specifications

      Frequently Asked Questions

      hide show

      What is the replacement for Sarel 87903 ?

      The replacement for Sarel 87903 is NSYCVF300M230PF

      NSYCVF300M230PF
      ClimaSys forced vent. IP54, 300m3/h, 230V, with outlet grille and filter G2



      Where is information on ATV31C drive ratings?


      Issue:
      ATV31C drive ratings

      Product Line:
      ATV31C

      Environment:
      All serial numbers for ATV31C

      Cause:
      N/A

      Resolution:
      The Installation manual, document 1624729, is attached.


      What is the IP rating of the VW3A1102 remote keypad mounting kit?

      Issue:
      IP rating information of the VW3A1102 remote keypad mounting kit

      Product Line:
      VW3A1102 remote keypad mounting bezel, VW3A1103 optional door.

      Environment:
      All units (part not serialized)

      Cause:
      Information needed for product selection

      Resolution:
      The VW3A1102 remote keypad mounting kit is rated IP54.  If optional cover VW3A1103 is used, this brings the degree of protection to IP65.

      Video: Does the ATV312 drive come with a remote keypad?

      Issue:
      Is a remote keypad come with the ATV312 drive as standard?

      Product Line:
      ATV312

      Environment:
      All models and serial numbers

      Cause:
      None

      Resolution:
      The ATV312 drive does not come with a remote keypad as a standard item.  It must be ordered separately.
      Remote Keypad Display
      (IP54) ATV312, ATV12 VW3A1006
      (IP65) ATV312, ATV12 VW3A1007
      Mounting Kit, VW3A31101
      Graphic Display  (used also with ATV61 and ATV71)  VW3A1101

      What are the replacement parts for ATV61W drives?

      Issue:
      ATV61W replacement parts.

      Product Line:
      ATV61WD and ATV61WU drives

      Environment:
      All series of ATV61WU/WD drives

      Cause:
      Replacement Parts

      Resolution:
      The part numbers of the ATV61WD and ATV61WU are not the same part numbers as the ATV61HU or ATV61HD drives, because of derating.
      Go to the Spares Online and select IP54 first and then select the correct ATV61WH or ATV61WU parts listing.
      Here is the link to this site:
      https://intranet-md.schneider-electric.com/services/webtool/your-selection.php
