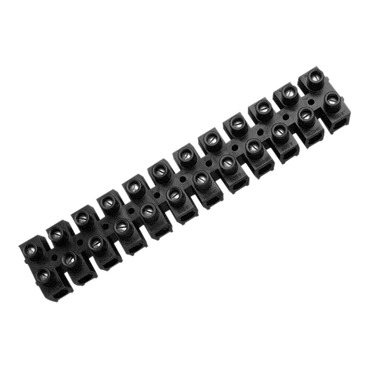

Max 4 Link Bars, Strip Connectors, 100A, Heavy Duty, 12 Terminal

Max 4 Link Bars, Strip Connectors, 100A, Heavy Duty, 12 Terminal

Item Number: BP366N

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Product brand

Clipsal

Range of product

Blue Point

Sustainable offer status

Green Premium product

Physical

[In] rated current

100 A

Rated voltage

750 V AC

Number of poles

12

Mounting support

panel

Width

46 mm grid pattern:

Length

264 mm

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

RoHS exemption information

Yes

Environmental Disclosure

ENVPEP121019EN

Others

Package 1 Bare Product Quantity

1

Cable cross section

35 mm² fine stranded without cable end sleeve

Minimum mounting height

39 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.9 cm

Package 1 Width

4.6 cm

Package 1 Length

26.2 cm

Package 1 Weight

0.447 kg
Show all specifications
