Clipsal MAX4 Heavy duty Meter link 350 A 500 V 7 hole Black

Back to Neutral, Active, Meter Links Home MAX4 Link Bars Neutral, Active, Meter Links

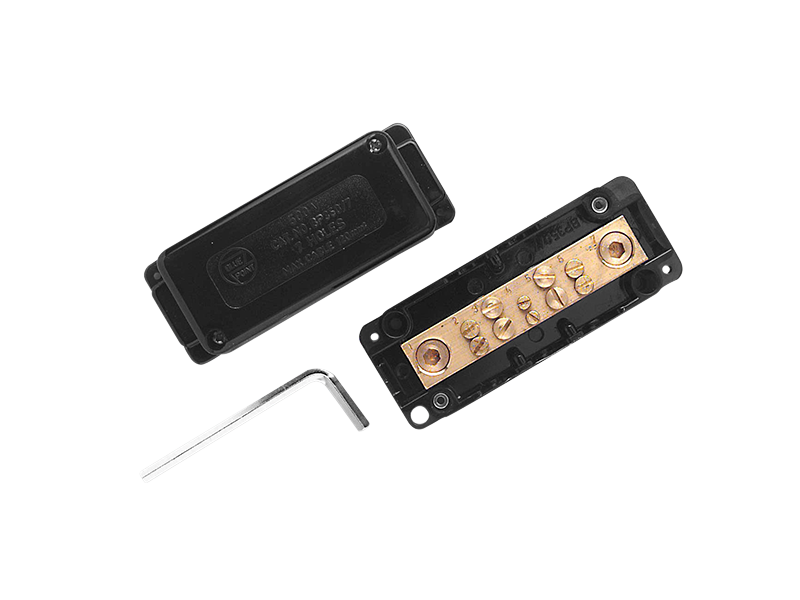

Clipsal MAX4 Heavy duty Meter link 350 A 500 V 7 hole Black

Clipsal MAX4 Heavy duty Meter link 350 A 500 V 7 hole Black

Item Number: BP350/7

Retail
$165.00
RRP (Inc. GST)
Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Product brand

Clipsal

Range of product

Blue Point

Product or component type

meter link

Physical

Mercury free

Yes

REACh Regulation

Free of Substances of Very High Concern above the threshold

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

EU RoHS Directive

Compliant

RoHS exemption information

Yes

[In] rated current

350 A

[Ue] rated operational voltage

500 V

Connector type

screw terminals

Others

Number of Units in Package 1

1

Package 1 Height

48 mm

Package 1 Length

126 mm

Package 1 Weight

449 g

Package 1 width

54 mm

Unit Type of Package 1

PCE

Cable cross section

120-120 mm²
Show all specifications

Frequently Asked Questions

hide show

What links will take 75mm cable?

The links that will take 75mm cable would be BP350/7 for the neutral and BP350/7RD for the actives.

What would be the part number for an active link with 95mm square holes?

The BP350/7 will do the job provided you only need 2 x 95mm holes.
For further information, visit the link below:-​
https://www.clipsal.com/Trade/search-results?q=BP350/7
