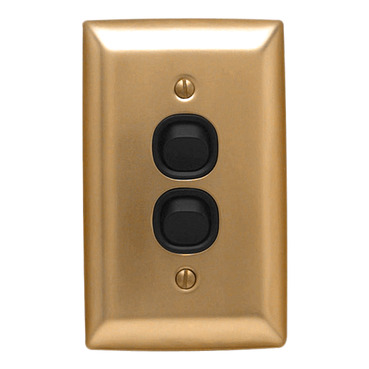

Flush Switch 2 Gang, 250VAC, 10A, Metal Plate Range, A Style, Standard, Vertical

Back to Switch Home Flush Switches - Metal Plate Switch

White Electric | Flush Switch 2 Gang, 250VAC, 10A, Metal Plate Range, A Style, Standard, Vertical

Flush Switch 2 Gang, 250VAC, 10A, Metal Plate Range, A Style, Standard, Vertical

Item Number: BA32VA-WE

Retail
$206.57
RRP (Inc. GST)
Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Sustainable offer status

Green Premium product

Range of product

Metal Plate

Product brand

Clipsal

Physical

Environmental Disclosure

ENVPEP120506EN

Mercury free

Yes

REACh Regulation

Free of Substances of Very High Concern above the threshold

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

EU RoHS Directive

Compliant

RoHS exemption information

Yes

Device presentation

basic element with full cover plate and grid

Switch function

  • 1-way
  • 2-way

      • Actuator

      rocker

      Number of rocker

      2

      Device mounting

      flush

      Fixing mode

      by screws

      Local signalling

      without

      [Ue] rated operational voltage

      250 V AC

      Rated current

      10 A

      Marking

      without marking

      Others

      Package 1 Weight

      0.16 kg
      Show all specifications

      Frequently Asked Questions

      hide show

      What is replacement for part number BB34VA?

      The replacement is a - BBSL34VA

      For more information on this part please refer to https://www.clipsal.com/Trade/Products/ProductDetail?catno=BBSL34VA

      What is the dimensions for a BSL32VA 2 Gang Switch ?

      Dimensions are:
      L x 130mm
      W x 85mm
      D x 30mm
      Mounting Centres - 84mm apart

      What is the dimensions for the B32A (Stainless Steel) and BB32A (Polished Brass) Architrave Switches ?

      The dimensions are:
      Length x 110mm
      Width x 35mm
      Depth x 30mm
      Mounting Centres x 95mm
