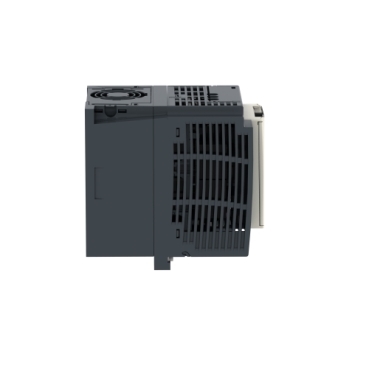

Altivar 12 Variable Speed Drive ATV12, 1.5kW, 2hp, 200..240V, 1ph

Altivar 12 Variable Speed Drive ATV12, 1.5kW, 2hp, 200..240V, 1ph

Altivar 12 Variable Speed Drive ATV12, 1.5kW, 2hp, 200..240V, 1ph

Item Number: ATV12HU15M2

Retail
N/A
RRP (Inc. GST)

Product Dimensions

Width icon

Width105 mm

Height icon

Height142 mm

Depth icon

Depth156.2 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product destination

asynchronous motors

Range of product

Altivar 12

Product or component type

variable speed drive

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

IP degree of protection

IP20 without blanking plate on upper part

Communication port protocol

Modbus

Connector type

1 RJ45 (on front face) for Modbus

Supply

  • internal supply for reference potentiometer: 5 V DC (4.75-5.25 V), <10 mA, protection type: overload and short-circuit protection
  • internal supply for logic inputs: 24 V DC (20.4-28.8 V), <100 mA, protection type: overload and short-circuit protection
    • Protection type

    • line supply overvoltage
    • line supply undervoltage
    • overcurrent between output phases and earth
    • overheating protection
    • short-circuit between motor phases
    • against input phase loss in three-phase
    • thermal motor protection via the drive by continuous calculation of I²t
      • Quantity per set

        set of 1

        Width

        105 mm

        Height

        142 mm

        Depth

        156.2 mm

        Net weight

        1.4 kg

        Relative humidity

      • 5-95 % without condensation conforming to IEC 60068-2-3
      • 5-95 % without dripping water conforming to IEC 60068-2-3
        • Ambient air temperature for operation

        • -10-50 °C protective cover from the top of the drive removed
        • 50-60 °C with current derating 2.2 % per °C
          • Product certifications

          • CSA
          • GOST
          • UL
          • NOM
          • C-Tick
            • Marking

              CE

              Ambient air temperature for storage

              -25-70 °C

              REACh Regulation

              Free of Substances of Very High Concern above the threshold

              EU RoHS Directive

              Pro-active compliance (Product out of EU RoHS legal scope)

              Mercury free

              Yes

              RoHS exemption information

              Yes

              China RoHS Regulation

              X

              Environmental Disclosure

              ENVPEP090202EN

              Circularity Profile

              ENVEOLI100205EN

              California proposition 65

              WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

              Others

              Component name

              ATV12

              Built-in fan

              with

              Network number of phases

              1 phase

              Motor power kW

              1.5 kW

              Motor power hp

              2 hp

              Line current

            • 17.8 A at 200 V
            • 14.9 A at 240 V
              • Speed range

                1-20

                Product specific application

                simple machine

                [Us] rated supply voltage

                200...240 V - 15...10 %

                EMC filter

                integrated

                Supply frequency

                50/60 Hz +/- 5 %

                Physical interface

                2-wire RS 485 for Modbus

                Transmission frame

                RTU for Modbus

                Transmission rate

              • 4800 bit/s
              • 9600 bit/s
              • 19200 bit/s
              • 38400 bit/s
                • Number of addresses

                  1-247 for Modbus

                  Communication service

                • read holding registers (03) 29 words
                • write single register (06) 29 words
                • write multiple registers (16) 27 words
                • read/write multiple registers (23) 4/4 words
                • read device identification (43)
                  • Continuous output current

                    7.5 A at 4 kHz

                    Maximum transient current

                    11.2 A for 60 s

                    Speed drive output frequency

                    0.5-400 Hz

                    Braking torque

                    up to 70 % of nominal motor torque without braking resistor

                    Output voltage

                    200...240 V 3 phases

                    Electrical connection

                    terminal, clamping capacity: 5.5 mm², AWG 10 (L1, L2, L3, U, V, W, PA, PC)

                    Tightening torque

                    1.2 N.m

                    Insulation

                    electrical between power and control

                    Analogue input type

                  • configurable current AI1 0...20 mA 250 Ohm
                  • configurable voltage AI1 0...10 V 30 kOhm
                  • configurable voltage AI1 0...5 V 30 kOhm
                    • Discrete input type

                      programmable LI1...LI4 24 V 18...30 V

                      Discrete input logic

                    • negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm
                    • positive logic (source), 0...< 5 V (state 0), > 11 V (state 1)
                      • Sampling duration

                      • 20 ms, tolerance +/- 1 ms for logic input
                      • 10 ms for analogue input
                        • Linearity error

                          +/- 0.3 % of maximum value for analogue input

                          Analogue output type

                        • AO1 software-configurable voltage: 0...10 V, impedance: 470 Ohm, resolution 8 bits
                        • AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits
                          • Discrete output type

                          • logic output LO+, LO-
                          • protected relay output R1A, R1B, R1C 1 C/O
                            • Minimum switching current

                              5 mA at 24 V DC for logic relay

                              Maximum switching current

                            • 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay
                            • 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay
                            • 3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay
                            • 4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay
                              • Braking to standstill

                                by DC injection, <30 s

                                Frequency resolution

                              • analog input: converter A/D, 10 bits
                              • display unit: 0.1 Hz
                                • Time constant

                                  20 ms +/- 1 ms for reference change

                                  Functionality

                                  basic

                                  Specific application

                                  commercial equipment

                                  Discrete and process manufacturing

                                  Power range

                                  1.1-2 kW at 200-240 V 1 phase

                                  Motor starter type

                                  variable speed drive

                                  Discrete input number

                                  4

                                  Discrete output number

                                  2

                                  Analogue input number

                                  1

                                  Analogue output number

                                  1

                                  Asynchronous motor control profile

                                • sensorless flux vector control
                                • quadratic voltage/frequency ratio
                                • voltage/frequency ratio (V/f)
                                  • Transient overtorque

                                    150-170 % of nominal motor torque depending on drive rating and type of motor

                                    Acceleration and deceleration ramps

                                  • U
                                  • S
                                  • linear from 0 to 999.9 s
                                    • Motor slip compensation

                                    • adjustable
                                    • preset in factory
                                      • Switching frequency

                                      • 2...16 kHz adjustable
                                      • 4...16 kHz with derating factor
                                        • Nominal switching frequency

                                          4 kHz

                                          Prospective line Isc

                                          1 kA

                                          Electromagnetic emission

                                        • radiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2...16 kHz shielded motor cable
                                        • conducted emissions with integrated EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m
                                        • conducted emissions with additional EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <20 m
                                        • conducted emissions with additional EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m
                                        • conducted emissions with additional EMC filter environment 2 category C3 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m
                                        • conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...16 kHz shielded motor cable <5 m
                                        • conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <10 m
                                          • Vibration resistance

                                          • 1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6
                                          • 1.5 mm peak to peak (f = 3-13 Hz) - drive unmounted on symmetrical DIN rail - conforming to EN/IEC 60068-2-6
                                            • Shock resistance

                                              15 gn conforming to EN/IEC 60068-2-27 for 11 ms

                                              Operating altitude

                                            • > 1000...2000 m with current derating 1 % per 100 m
                                            • <= 1000 m without derating
                                              • Operating position

                                                vertical +/- 10 degree

                                                Assembly style

                                                with heat sink

                                                Electromagnetic compatibility

                                              • electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4
                                              • electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
                                              • immunity to conducted disturbances level 3 conforming to EN/IEC 61000-4-6
                                              • radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3
                                              • surge immunity test level 3 conforming to EN/IEC 61000-4-5
                                              • voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11
                                                • Noise level

                                                  45 dB

                                                  Unit Type of Package 1

                                                  PCE

                                                  Number of Units in Package 1

                                                  1

                                                  Package 1 Weight

                                                  1.738 kg

                                                  Package 1 Height

                                                  23 cm

                                                  Package 1 width

                                                  20 cm

                                                  Package 1 Length

                                                  21.5 cm

                                                  Unit Type of Package 2

                                                  P06

                                                  Number of Units in Package 2

                                                  30

                                                  Package 2 Weight

                                                  64.84 kg

                                                  Package 2 Height

                                                  73.5 cm

                                                  Package 2 width

                                                  60 cm

                                                  Package 2 Length

                                                  80 cm

                                                  WEEE

                                                  The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
                                                  Show all specifications

                                                  Documents & downloads

                                                  hide show
                                                  Filter items
                                                  • All

                                                  • Product Brochures

                                                  • CAD Files and Packs

                                                  • Technical Data Catalogues

                                                  • Installation Instruction

                                                  • Product Environmental

                                                  • End of Life Manual

                                                  • Data Bulletin

                                                  • Handout

                                                  • Operating Manuals

                                                  • Certificates (MSDS)

                                                  • eTechPub

                                                  • Software - Release

                                                  • DTM Files

                                                  Frequently Asked Questions

                                                  hide show

                                                  What is a good source of information for the ATV12?

                                                  Issue:
                                                  Looking for ATV12 information

                                                  Product Line:
                                                  Altivar 12

                                                  Environment:
                                                  All models and serial numbers

                                                  Cause:
                                                  Information is needed for installation and programming.

                                                  Resolution:
                                                  User manual is document number BBV28581.  This manual includes instructions for installing the drive, connecting the control wiring, programming and troubleshooting.
                                                  https://www.schneider-electric.us/en/download/document/BBV28581/

                                                  What is the ambient temperature operating range of the ATV12 series drives?

                                                  Issue:
                                                  ATV12 ambient temperature operating range

                                                  Product Line:
                                                  ATV12 series drives.

                                                  Environment:
                                                  All models, All serial numbers.

                                                  Cause:
                                                  N/A

                                                  Resolution:

                                                  Ambient Air Temperature**

                                                  ATV12H018F1, ATV12H037F1
                                                  ATV12H018M2...H075M2
                                                  ATV12H018M3...H075M3
                                                  ATV12P models
                                                  Operation -10C to +40C without derating.  Up to +60C with derating.  Remove the blanking cover and de-rate at 2% per degree above 40C.

                                                  ATV12H075F1
                                                  ATV12HU15M2, HU22M2
                                                  ATV12HU15M3...HU40M3
                                                  Operation -10C to +50C without derating.  Up to +60C with derating.  Remove the blanking cover and de-rate at 2% per degree above 50C.

                                                  Storage temperature for all units is -25C to +70C

                                                  ** UL ratings are up to 40C only.  Higher temperature ratings listed above are for non-UL listed applications only.
