Acti 9 ReFlex iC60H Ti24, 10A, 2P, Curve C, Integrated Control MCB

Back to Reflex iC60H Home Acti 9 System Reflex iC60H

Acti 9 ReFlex iC60H Ti24, 10A, 2P, Curve C, Integrated Control MCB

Acti 9 ReFlex iC60H Ti24, 10A, 2P, Curve C, Integrated Control MCB

Item Number: A9C65210

Retail
$972.55
RRP (Inc. GST)
Where To Buy

Product Dimensions

Width icon

Width81 mm

Height icon

Height84 mm

Depth icon

Depth77 mm

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Sustainable offer status

Green Premium product

Warranty

18 months

Market segment

  • small commercial
  • residential

      • Device application

    • control
    • distribution

        • Range

        Acti 9

        Range of product

        Reflex iC60

        Product or component type

        integrated control circuit breaker

        Product compatibility

        with PLC

        Physical

        Circularity Profile

        ENVEOLI1107022EN

        Environmental Disclosure

        ENVPEP110722EN

        Mercury free

        Yes

        REACh Regulation

        Free of Substances of Very High Concern above the threshold

        China RoHS Regulation

        Product out of China RoHS scope. Substance declaration for your information

        EU RoHS Directive

        Compliant

        RoHS exemption information

        Yes

        [In] rated current

        10 A

        Control type

      • remote control by pulse
      • toggle
      • ON/OFF button
      • remote control by continuous command

          • Control signal type

        • impulse
        • maintained
        • maintained very low voltage

            • Local signalling

          • green LED: device ON
          • flashing LED: device overheat
          • red LED: fault
          • flashing LED: device ready
          • flashing LED: device tripped

              • Mounting mode

              fixed

              Mounting support

              35 mm symmetrical DIN rail

              Height

              84 mm

              Width

              81 mm

              Depth

              77 mm

              Mechanical durability

              50000 cycles

              Electrical durability

              AC-1: 50000 cycles AC 50 Hz

              IP degree of protection

              IP20 conforming to IEC 60529

              Relative humidity

              93-93 % at 40-40 °C

              Others

              Halogen content performance

              Halogen free plastic parts product

              Package 1 Height

              9 cm

              Package 1 Length

              16.5 cm

              Package 1 Weight

              567 g

              Package 1 width

              11 cm

              Package 2 Height

              30 cm

              Package 2 Length

              40 cm

              Package 2 Weight

              8.425 kg

              Package 2 width

              30 cm

              Number of Units in Package 1

              1

              Number of Units in Package 2

              14

              Unit Type of Package 1

              PCE

              Unit Type of Package 2

              S03

              WEEE

              The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

              Product name

              Reflex iC60

              Device short name

              Reflex iC60H

              Poles description

              2P

              Number of protected poles

              2

              Network type

              AC

              Trip unit technology

              thermal-magnetic

              Curve code

              C

              Network frequency

              50/60 Hz

              Breaking capacity code

              H

              Breaking capacity

            • 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
            • 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2

                • [Ui] rated insulation voltage

                500 V AC

                Contact position indicator

                yes

                [Uc] control circuit voltage

              • 230 V AC 50/60 Hz
              • 24 V AC 50/60 Hz
              • 48 V AC 50/60 Hz
              • 24 V DC
              • 48 V DC

                  • [Us] rated supply voltage

                  230 V AC at 50/60 Hz

                  9 mm pitches

                  9

                  Provision for padlocking

                  padlockable

                  Locking options description

                  padlock in OFF position

                  Earth-leakage protection

                  separate block

                  Compatibility code

                  Reflex_iC60

                  Pollution degree

                  3

                  Tropicalisation

                  2
                  Show all specifications

                  Documents & downloads

                  hide show
                  Filter items

                  • All

                  • CAD Files and Packs

                  • Product Brochures

                  • Technical Data Catalogues

                  • Installation Instruction

                  • Operating Manuals

                  • Certificates (MSDS)

                  • Declaration of Conformity

                  CAD file (on TraceParts) for A9C65210: Reflex iC60H Ti24 10 A 2P curve C integrated control MCB

                  CAD file (on TraceParts) for A9C65210: Reflex iC60H Ti24 10 A 2P curve C integrated control MCB

                  ZIP

                  A9 REFLEX Promotional Brochure

                  A9 REFLEX Promotional Brochure

                  614 KB PDF

                  Acti 9 - The complete high-performance (Panorama)

                  Acti 9 - The complete high-performance (Panorama)

                  1.4 MB PDF

                  Acti 9 communication system

                  Acti 9 communication system

                  761.7 KB PDF

                  Acti 9 Control Brochure

                  Acti 9 Control Brochure

                  1.8 MB PDF

                  Acti 9 Overview Panorama

                  Acti 9 Overview Panorama

                  2.2 MB PDF

                  Acti 9 Reflex iC60 - Overview guide

                  Acti 9 Reflex iC60 - Overview guide

                  519.5 KB PDF

                  Acti 9 Reflex iC60 - Technical guide

                  Acti 9 Reflex iC60 - Technical guide

                  851.4 KB PDF

                  Connect to energy efficiency

                  Connect to energy efficiency

                  7.1 MB PDF

                  Sistemul de comunicatie Acti 9

                  Sistemul de comunicatie Acti 9

                  1.6 MB PDF

                  Smart Panels - Connect your buildings to energy savings

                  Smart Panels - Connect your buildings to energy savings

                  ZIP

                  Smart Panels - Connect your buildings to energy savings

                  Smart Panels - Connect your buildings to energy savings

                  ZIP

                  Smart Panels - Connect your buildings to energy savings

                  Smart Panels - Connect your buildings to energy savings

                  4.3 MB PDF

                  Smart Panels - Connect your buildings to energy savings

                  Smart Panels - Connect your buildings to energy savings

                  4.3 MB PDF

                  Smart Panels: Embrace the future of power distribution (eBrochure)

                  Smart Panels: Embrace the future of power distribution (eBrochure)

                  12.5 MB PDF

                  EcoStruxure Power connected products - catalogue 2019

                  EcoStruxure Power connected products - catalogue 2019

                  ZIP

                  Reflex iC60 - Integrated remote control circuit breakers - Instruction Sheet

                  Reflex iC60 - Integrated remote control circuit breakers - Instruction Sheet

                  ZIP

                  Acti 9 Smartlink Modbus Communication System - User Manual

                  Acti 9 Smartlink Modbus Communication System - User Manual

                  ZIP

                  Acti9 Smartlink Ethernet Communication System - User Manual

                  Acti9 Smartlink Ethernet Communication System - User Manual

                  ZIP

                  Acti9 Smartlink Modbus - User Manual

                  Acti9 Smartlink Modbus - User Manual

                  ZIP

                  Reflex iC60 Integrated Control Circuit Breakers - Reference Manual

                  Reflex iC60 Integrated Control Circuit Breakers - Reference Manual

                  ZIP

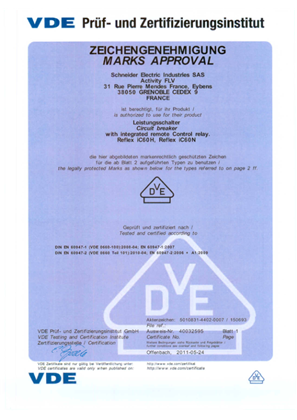

                  Certificate Reflex iC60H according to EN 60947-2

                  Certificate Reflex iC60H according to EN 60947-2

                  1.5 MB pdf

                  Certificate Reflex iC60H according to EN 60947-2

                  Certificate Reflex iC60H according to EN 60947-2

                  2.2 MB pdf

                  Certificate REFLEX iC60H and REFLEX iC60N according to EN 60947-1:2007 and EN 60947-2:2006

                  Certificate REFLEX iC60H and REFLEX iC60N according to EN 60947-1:2007 and EN 60947-2:2006

                  1.3 MB pdf

                  Certificate Reflex iC60N according to EN 60947-2

                  Certificate Reflex iC60N according to EN 60947-2

                  1.4 MB pdf

                  Licence NF Reflex iC60H according to EN 60947-2:2006

                  Licence NF Reflex iC60H according to EN 60947-2:2006

                  1.6 MB pdf

                  EU Declaration FD16032929A Reflex iC60NH

                  EU Declaration FD16032929A Reflex iC60NH

                  293.8 KB PDF

                  Frequently Asked Questions

                  hide show

                  What is the code for 10A 2P D Curve MCB - rated at 10kA ?

                  Code = A9F45210   C60 MCB

                  What is the Alternative for the Merlin Gerin 15913?

                  A9C15913

                  How wide is A9A15219 Safety Transformer ?

                  10 Modules of 9mm = 90mm

                  What is the acti 9 equivelant of the 15512

                  The part code is A9C30211

                  What is the alternative to the 4RCBE210/30?

                  Within the Schneider Electric range, the alternative for the 4RCBE210/30 is A9D11210

                  Can the A9F44210 be used with 110v AC?

                  Yes it can, the only difference between a 100v and 230v is that you will get 36kA breaking capacity as opposed to 20kA (230v).
