Acti9 Voltage Undervoltage Release, Imn, Tripping Unit, 48VAC

Acti9 Voltage Undervoltage Release, Imn, Tripping Unit, 48VAC

Acti9 Voltage Undervoltage Release, Imn, Tripping Unit, 48VAC

Item Number: A9A26961

Retail
$440.22
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Sustainable offer status

Green Premium product

Warranty

18 months

Range

Acti 9

Product or component type

undervoltage release

Range of product

  • iDPN Vigi
  • iC60
  • iID
  • iSW-NA
    • Product compatibility

    • iSW-NA
    • single terminal
    • iID
    • double terminal
    • iC60
    • RCA
    • ARA
    • iDPN Vigi
      • Market segment

      • small commercial
      • residential
        • Physical

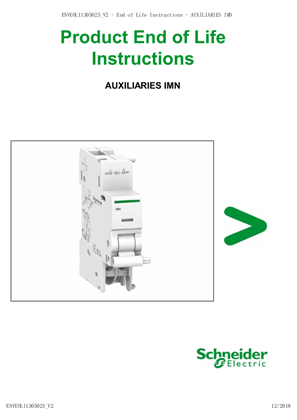

          Circularity Profile

          ENVEOLI1305023

          Environmental Disclosure

          ENVPEP1305023

          Mercury free

          Yes

          REACh Regulation

          Free of Substances of Very High Concern above the threshold

          China RoHS Regulation

          Product out of China RoHS scope. Substance declaration for your information

          EU RoHS Directive

          Compliant

          RoHS exemption information

          Yes

          Control type

          standard

          Range compatibility

        • Acti 9 iC65
        • Acti 9 ARA
        • Acti 9 iDPN Vigi
        • Acti 9 iID
        • Acti 9 iSW-NA
        • Acti 9 RCA
        • Acti 9 iDPN (China version)
        • Acti 9 iC60 double terminals miniature circuit breaker
        • Acti 9 iC40
          • Local signalling

            action indicator

            Mounting mode

            clip-on

            Mounting support

            DIN rail

            Width

            18 mm

            Connections - terminals

          • clamp terminal - 1 cable(s) 9-9 mm² - rigid
          • clamp terminal - 2 cable(s) 2.8-2.8 mm² - rigid
          • clamp terminal - 1 cable(s) 7-7 mm² - flexible
          • clamp terminal - 2 cable(s) 2.8-2.8 mm² - flexible with cable end
            • Standards

              EN/IEC 60947-5-1

              Relative humidity

              95-95 % at 55-55 °C

              Ambient air temperature for operation

              -25-50 °C

              Ambient air temperature for storage

              -40-85 °C

              Others

              Package 1 Height

              8 cm

              Package 1 Length

              9.4 cm

              Package 1 Weight

              79 g

              Package 1 width

              3 cm

              Package 2 Height

              8.7 cm

              Package 2 Length

              26.7 cm

              Package 2 Weight

              691 g

              Package 2 width

              10 cm

              Package 3 Height

              30 cm

              Package 3 Length

              40 cm

              Package 3 Weight

              6.725 kg

              Package 3 width

              30 cm

              Number of Units in Package 1

              1

              Number of Units in Package 2

              8

              Number of Units in Package 3

              72

              Unit Type of Package 1

              PCE

              Unit Type of Package 2

              BB1

              Unit Type of Package 3

              S03

              WEEE

              The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

              Device short name

              iMN

              [Uc] control circuit voltage

            • 48 V AC 50/60 Hz
            • 48 V DC
              • 9 mm pitches

                2

                Tightening torque

                1-1 N.m

                Compatibility code

                iMN

                Tropicalisation

                2 conforming to EN/IEC 60947-5-1
                Show all specifications

                Frequently Asked Questions

                hide show

                What are the codes of the items supplied with the 3 phase EV parking protection kits?

                Parts that should be supplied as follows:

                KITPARKING22-1:
                A9F54440 x 1, MCB, iC60H 4P 40A C Curve
                A9Z51440 x 1, RCD, iIDP 4P 40A 30mA Type B, 400V
                A9A26969 x 2, Under voltage release, iMNX 220 240VAC
                A9F44204 x 1, MCB, iC60N 2P 4A C Curve
                A9R91240 x 1, RCCB, iID 2P 40A 30mA Type Asi
                A9A26924 x 2, Aux contact, iOF 240 415VAC 24 130VDC

                KITPARKING22-2:
                A9F54440 x 2, MCB, iC60H 4P 40A C Curve
                A9Z51440 x 2, RCD, iIDP 4P 40A 30mA Type B, 400V
                A9A26969 x 3, Under voltage release, iMNX 220 240VAC
                A9F44204 x 1, MCB, iC60N 2P 4A C Curve
                A9R91240 x 1, RCCB, iID 2P 40A 30mA Type Asi
                A9A26924 x 4, Aux contact, iOF 240 415VAC 24 130VDC


                Does the A9A26981 fit on the A9S66163?

                Yes, that is designed to fit on the Acti9 shaped devices including the iSW switches.

                will the A9A26929 fit on a C60-DC MCB?

                No, those are designed to fit onto the acti9 AC MCBs for those MCBs use the A9N26929

                What items come with the KITWALLBOX7?

                A9Z51240 = Type B single phase RCCD
                A9F54240 = 2 pole, 40A, Curve MCB
                A9A26969 = Under voltage release

                What is the code for the Acti9 Padlock?

                The code is A9A26970

                Are the A9N18359 and A9A26924 compatible?

                The ref A9N18359 is C120 MCB (Multi9 design in the white material).

                The ref A9A26924 is iOF auxiliary (Aciti9 design for iC60 MCB).

                I can confirm that the parts A9N18359 and A9A26924 are not compliant with each other
