Back Entry Plug, 10A

White | Back Entry Plug, 10A

Back Entry Plug, 10A

Item Number: 905-WH

Retail
$11.25
RRP (Inc. GST)

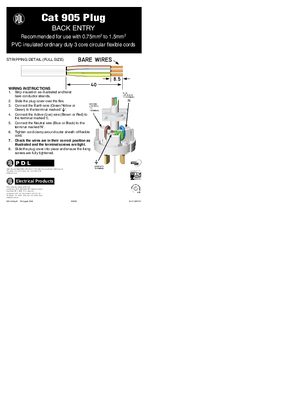

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • PDL
  • Series 900
    • Product brand

      Clipsal

      Colour

      body: white

      Physical

      [In] rated current

      10 A

      [Ue] rated operational voltage

      230 V 50/60 Hz conforming to EN 60309-2

      Material

      Material

      plastic

      Others

      Voltage colour

      blue

      Plug, socket, control station shape

      straight

      Duration

      6 h

      Package 1 Weight

      0.042 kg
      Show all specifications

      Frequently Asked Questions

      hide show

      IP rating for ZBZ1905, ZBZ2005, ZBZ2105

      Issue:

      What IP rating will a 22mm operator have when used with the available plastic guards ZBZ1905, ZBZ2005, ZBZ2105

      Product Line:

      22mm Push Button Accessories

      Environment:

      US Product

      Cause:

      IP ratings can be changed when accessories are introduced

      Resolution:

      Per the instruction sheet supplied with these guards (attached):

      When the flats and nibs are alligned properly between the guard and operator, the gasket will maintain the IP rating of the operator against the panel.



      Will the 279C50 gland fit the 9050TCM?

      Yes. 279C50 is suitable for 50mm corrugated conduit, which the 9050TCM is.


      Can the LV429652 be made up in parts?

      Yes, as below:
      • LV429008    (NSX Frame)
      • LV429052    (Trip unit)

      Do the Powerpact H & Powerpact J frame breakers have interchangeable rating plugs?

      Issue:
      Can the Powerpact H- and J- frame breakers be replaced with different rating plugs?

      Product Line:
      Molded Case Circuit Breakers

      Environment:
      PowerPact H and J frame Circuit Breakers

      Resolution:
      No the Powerpact H & J frame breakers do not have interchangeable rating plugs.

      You can change the trip units in the unit mount breakers (not I-Line mount) if they were order with this capability, however, the 15-60 amp trip units can only be used in the 60 amp frame and the 70 - 150 amp trip units can only be used in the 150 amp frame.

      See FA229053 for the interchangeable trip units for the Powerpact H and J frame circuit breakers.

      What is the part number for a 9001K potentiometer dial legend plate?

      Issue:
      Looking for the part number of a 9001K potentiometer dial legend plate?

      Product Line:
      Push Buttons and Operator Interface

      Environment:
      9001K Potentiometer

      Cause:
      Product selection

      Resolution:
      The part number was 9001KN905 which is now obsolete, but can still be ordered as part number 6517512701

      What is the UL file and conditions of acceptability for Multi 9 UL 1077 Recognized C60 Supplementary Protectors?

      Issue:
      What does UL accept as conditions for Supplementary Protectors?

      Product Line:
      UL1077 Supplementary Protectors

      Resolution:
      UL 1077 Circuit Breaker, File No. E90509, CSA C22.2 No. 235 File No. 179014

      CONDITIONS OF ACCEPTABILITY (NOT FOR UL REPRESENTATIVE USE):
      Use - For use only in products where the acceptability of the combination is determined by Underwriters Laboratories Inc.

      1.These devices are intended to be DIN rail mounted or faceplate mounted with front mounting bracket accessory. Additionally, they should be mounted in an enclosure having adequate strength and thicknesses in the intended manner and with spacing in accordance with the requirements of the overall equipment.

      2.  Intentionally left blank.

      3.These devices should be used within their Recognized ratings.

      4.Test records should be reviewed, including short circuit tests, when judging the acceptability of these devices in an end use application.

      5.These devices are not suitable for branch circuit protection.

      6.These devices are designed to trip within the trip curve characteristics provided by the manufacturer; as indicated in the report.  Trip times were confirmed at 300% of rating and at 150% of rating.

      7.Considerations should be given to the need for insulating barriers when uncovered openings in the side of the case are mounted adjacent to metal surfaces, such as an enclosure.

      8.These devices have been determined to be trip free per
      requirements effective July 14, 2008, 6th Edition of UL 1077.

      9.The terminals are suitable for Field or Factory wiring.
