Clipsal - 900 Series, Standard Clipsal - 900 Series, Plug, Side Entry, 3 PIN, 10A

White | Clipsal - 900 Series, Standard Clipsal - 900 Series, Plug, Side Entry, 3 PIN, 10A

Clipsal - 900 Series, Standard Clipsal - 900 Series, Plug, Side Entry, 3 PIN, 10A

Item Number: 903-WH

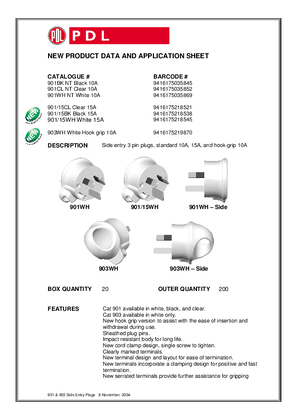

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • PDL
  • Series 900

Product brand

Clipsal

Colour

body: white

Physical

[In] rated current

10 A

[Ue] rated operational voltage

230 V 50/60 Hz conforming to EN 60309-2

Others

Voltage colour

blue

Plug, socket, control station shape

angled

Duration

6 h

Unit Type of Package 1

PCE

Number of Units in Package 1

1
Show all specifications

Frequently Asked Questions

hide show

Video: Why is the Micrologic Trip Unit Type P or H reading negative power?

Product Line
Micrologic Trip Unit Type P and H
Breakers: Powerpact P and R Frames, Masterpact NT and NW, Compact NS630B- NS3200

Environment
Micrologic Trip Unit Type P and H

Cause
The power readings from the device are all negative, yet all of the voltages and currents are positive numbers.

Resolution
The power sign must be changed to accommodate this issue. The power sign has two different settings: (+) and (-). The (+) setting implies that power is absorbed from upstream to downstream (meaning it is top-fed). The (-) setting implies that power is absorbed from downstream to upstream (meaning it is bottom-fed).

The power sign can only be changed from the front panel of the Trip Unit. From the main menu go to either the Micrologic Setup or Metering Setup menus then follow the steps in the diagrams below. In order to change settings via the menu buttons on the trip unit, the trip unit must be energized AND the door over the adjustment dials MUST be OPEN.
To change the power sign:
  1. Press the Wrench menu button
  2. Select Micrologic Setup
  3. Select Power Sign
  4. Open the trip unit door (see video for details)
  5. Toggle power sign with up or down arrow
  6. Press Enter to select sign
  7. Press Wrench button to exit
  8. Select YES to save settings on exit





For further information about the Micrologic Trip Units Type P and H see link for the instruction bulletins below.
Powerpact P, R, and Masterpact NW, NT Micrologicâ„¢ 5.0P and 6.0P Trip Units, see 48049-137-05
Powerpact P, R, and Masterpact NW, NT Micrologicâ„¢ 5.0H and 6.0H Trip Units, see 48049-330-03

Where to download the firmware (V 1.13.0) for SpaceLogic C-Bus Controllers NAC and AC?

The new firmware (version 1.13.0) for SpaceLogic C-Bus Controllers NAC and AC is available for download on se.com. and in Exchange Platforms

The new firmware version V1.13.0 is available for 5500NAC2, 5500AC2, 5500NAC, 5500SHAC, LSS5500NAC, LSS5500SHAC.

The main features of this new firmware release  (V1.13.0) are:


  • Scheduler Enhancement
  • Error reporting application improvements
  • Bug fixes

Related documents can be downloaded along with the firmware file:
  • Release Notes for V1.13.0
  • User Manual update for firmware V1.13.0
Links for www.se.com page and Exchange to download the firmware and the related documents:


5500NAC2
SpaceLogic C-Bus Network Automation Controller
Commercialized


Se.com: Link

Exchange:
Firmware download page link

Direct link to the firmware file

5500AC2
SpaceLogic C-Bus Application Controller
Commercialized


Se.com: Link

Exchange:
Firmware download page link

Direct link to the firmware file

5500NAC
C-Bus Network Automation Controller
End of Commercial


Se.com:  Link

Exchange:
Firmware download page link

Direct link to the firmware file

5500SHAC
Wiser for C-Bus Automation Controller
End of Commercial


Se.com: Link


Exchange:
Firmware download page link

Direct link to the firmware file





Identifying mechanically held contactor versus electrically held contactor

Issue:
How to tell whether lighting contactor is mechanically held or electrically held

Product Line:
8903 Lighting contactors

Environment:
Products sold and used in the United States

Cause:
Catalog numbers are not always known and visual identification must be performed.

Resolution:
Electrically held contactors have a single coil which is continuously energized to engage the power contacts.  Mechanically held contactors have two different coils, a latching coil and an unlatching coil.  These coils are only momentarily energized to engage or disengage the power contacts.

What is the replacement for Sarel 87903?

The replacement for Sarel 87903 is NSYCVF300M230PF

NSYCVF300M230PF
ClimaSys forced vent. IP54, 300m3/h, 230V, with outlet grille and filter G2



What are the neutral current transformers used for ground fault sensing NT and NW Masterpact breakers?

Product Line:
NT and NW Masterpact breaker

Resolution:

 Table 41:        T-Frame Circuit Breakers
External neutral sensor for 3-phase, 4-wire residual ground fault system (or for neutral current monitoring).
These neutral sensors include their wiring harness. To order this harness as a spare part, order cat. no. NCTWIRING.

NT Circuit Breaker
Sensor Plug
 External Neutral Sensor for general useExternal Neutral Sensor
Square D Panelboard
External Neutral Sensor for use in
Square D Switchboards
  External neutral sensor for circuit breakers with standard neutral protection
100–250 AS33575S33924S33926
400–1600 AS33576S33925S33927
  External neutral sensor for circuit breakers with oversized neutral protection♦
100 AS33575S33924S33926
250 AN/AN/AN/A
400–1000 AS33576S33925S33927
1200/1250 AS48896N/ANA
1600 AS48182N/ANA
♦Oversized neutral protection = 1.6xIr where Ir = long time pick-up.


Table 42:        W/Y-Frame Circuit Breakers
External neutral sensor for 3-phase, 4-wire residual ground fault system (or for neutral current monitoring) and external sensor for Modified Differential Ground Fault (MDGF) or Source Ground Return (SGR) system.
These neutral sensors include their wiring harness. To order this harness as a spare part, order cat. no. NCTWIRING.



Frame
Size


Sensor Plug (A)
External Neutral SensorPZ4 External Neutral Sensor
(For use in PZ4 Switchgear)


MDGF/ SGR
Sensorâ–º

For Residual Ground Fault
For 3-Pole Circuit Breaker with
Oversize Neutral
Protection♦

For Residual Ground Fault
For 3-Pole Circuit Breaker with
Oversize Neutral
Protection♦






W
100 S48916S48916 S48902S48902
250N/AN/A
400


S34036

S34036



S48903


S48903




S33579
600/630
800
1000
1200/1250S48896
1600
S48182



N/A
2000S48896
2500

S48182


S48182
3000
N/A
3200
4000N/A




Y
2000



S48897•


S48897•


S48898•

S48898•




S33579
2500
3000


N/A
3200
4000
5000
N/A
 S48897•
6000
6300N/A
•Kit includes qty. (2) neutral sensors.
â–ºFour MDGF sensors (phase + 1 neutral) are required for W-frame; eight MDGF sensors are required for Y-frame. For SGR system, only one sensor (neutral) is required for W-frame; two sensors for Y-Frame.
        An MDGF/SGR ground fault interface module (Cat. no. S48891) is also required for each circuit breaker.
♦Oversized neutral protection = 1.6xIr where Ir = long time pick-up.

See catalog 0613DB1607 for more Masterpact parts

What's the difference between a regular Home member, an Administrator and the Homeowner?

The Homeowner has access to all functions. Administrator has access to all functions except the ability to transfer the homeowner rights, delete the home and granting administrator rights to other members. A common member only has access to operate devices, receive notifications (alarm, moment/automation trigger, device added/removed and invite) from a home, configure device settings and schedules.
