Brushed Bronze Cove

Brushed Bronze Cove

Brushed Bronze Cove

Item Number: 694M-BZ

Retail
N/A
RRP (Inc. GST)
Colour Bronze (BZ)
  • Bronze 1 PCE
  • Polished Brass 1 PCE
  • Stainless Steel 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

PDL 600 Designer Series

Product brand

Clipsal

Product destination

socket-outlet

Surface finish

matt

Material

Material

metal

Others

Package 1 Weight

0.024 kg
Show all specifications

Frequently Asked Questions

hide show

What is the cut out size for a PDL 644

Size is 90 x 69mm

What is the part number for PDL single p/point with extra switch?

The part number for PDL single p/point with extra switch is 694X-WH.
Some of the Key Features are:
  • Larger rockers, matching the rockers on switch modules
  • Suits Cat 144 Flush Box and Cat 148H or 146H Mounting Bracket, Suits Cat 694M Metal cover plate
  • Removable extra switch 20 A

For more information , please visit: https://www.clipsal.com/Trade/Products/ProductDetail?catno=694X

Is there a single horizontal socket with a round earth pin available in the 600 series? A 694R For example?

No the 694R is not available but the PDL691R(single vertical), PDL692R(double vertical) & PDL695R(double horizontal) are available

L1JCN - Is there a spare knob to suit PDL 654M

Yes code is PDL620P

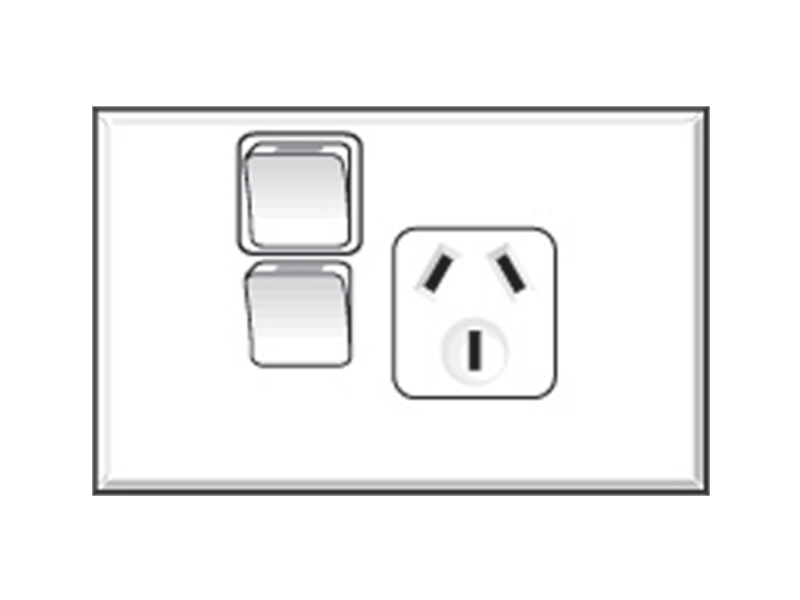

Is there a metal cover plate available to suit the PDL 694X - single, horizontal socket outlet with extra switch?

There are three metal cover plates available to suit the PDL 694X - Polished Brass (PB) PDL694XMPB, Brushed Bronze (BBZ) PDL694XMBBZ and Stainless Steel (SS) PDL694XMSS.

Is the PDL 694X, socket outlet horizontal and switched with an extra switch, available in black?

No, the PDL 694X is only available in white


Do we have a 20Amp PDL 694 Switched Socket Outlet ?

No - Rated at 15A =  PDL694/15WH

Can the PDL 654PB do 2 way switching?

• The 654M dimmer incorporates an integral switch, and is designed for One-Way operation only. If Two-Way switching is required, then a separately switched dimmer mechanism must be used.

Is there a spare PDL 654M knob in black?

Yes, it comes as a part of a spare knob pack - PDL 620PBK for black (also available in PDL 620PWH for white).


Is there a Surge Protection Socket Outlet available in the 600 series?

PDL used to do a complete unit - The 695SP however, this is now obsolete. A Surge Protection Outlet can be made up of parts. You will need to use one of the sockets that have an extra switch space such as the 694X or the 695X and replace the extra switch with our Surge Protection Module, the 600SM.



Is the PDL 654M suitable for LED dimming?

Maybe.
We don't have a specific dimmer rated for LED lighting available in NZ.
Due to the large variety of LED brands and drivers available we suggest customers contact the LED manufacturer for advice on which dimmer they recommend as suitable for the particular fitting they claim as dimmable.
As we have not tested our dimmers on all the possible fittings we can't be sure that any particular dimmer will work better than another, or at all, with LED's.


How do the PDL 600 and 800 series product codes work?

As a general rule of thumb -
PDL items require PDL at the front of the code.
600 series item codes start with 6.
600 series switch codes start with 68.
The number of switches fitted in the plate is the 3rd number in the code, 681 = single 600 series switch, 682 = double 600 series switch
600 series socket codes start with 69.
The 3rd digit in a socket code indicates the type of socket, 691 = single vertical socket, 692 = double vertical socket, 694 = single horizontal socket, 695 = double horizontal socket.
Most codes require a colour code at the end, WH = white, BK = black.
eg. To order a black double vertical switched socket the complete code would be PDL692BK.
800 series (Modena) item codes start with 8 and follow the same format as above. (800 series items with Strato plates start with S8...)
eg. An 800 series Modena double switch in white = PDL882WH, a Strato double horizontal switched socket in black = PDLS895BK
In both series metal cover plates are an extra option to be supplied separately, coded to fit the plate required, eg. 600 series single switch metal plate in Stainless Steel = PDL681MSS (M = Metal, BBZ = Brushed Bronze, PB = Polished Brass) Some plastic cover plates are available eg. PDL681CWH (C = Cover), PDL800PSCH (PS = Plastic Surround, CH = Champagne, there are 9 colour options in 800 series)
Strato brushed aluminium plates also need BK or WH to decide the trim colour, eg. PDLS800CBABK or PDLS800CBAWH (C = Cover , BA = Brushed Aluminium)
Module grids with covers are available in BK or WH, eg. PDL684VHWH (VH = vertical/horizontal since the grid is empty and module can be fitted either way), PDLS800GPSBK (GPS = Grid, Plate, & Surround).
Grids without covers included are only available in Modena 800 series, PDL800G (horizontal) or PDL800GV (vertical)
Refer pdl.co.nz for further details and options.
