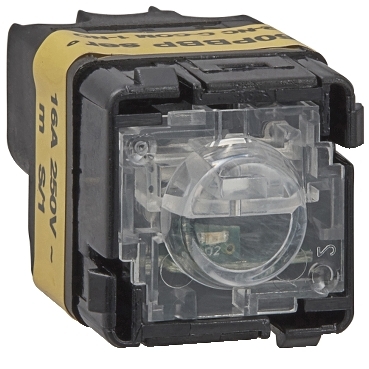

Clipsal Saturn Push Button Switch Mechanism, Momentary, Gold Plated Contacts, LED

Clipsal Saturn Push Button Switch Mechanism, Momentary, Gold Plated Contacts, LED

Clipsal Saturn Push Button Switch Mechanism, Momentary, Gold Plated Contacts, LED

Item Number: 60PBBPL/GP

Retail
$70.44
RRP (Inc. GST)

Product Dimensions

Width icon

Width23.5 mm

Height icon

Height23.5 mm

Embedding depth icon

Embedding depth31.6 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Saturn Horizon Silver Group shot
Saturn 4000 Espresso Black 4025-EB
Clipsal Saturn 4000 Ocean Mist, 4025-OM
Saturn 4000 Pure White 4025-PW

Specifications

Design

Range of product

Saturn Series 4000

Product or component type

push-button

Product brand

Clipsal

Physical

Device presentation

basic element

Actuator

push-button

Local signalling

indicator light

Fixing mode

by screws

[Ue] rated operational voltage

250 V AC

Inrush current

16 A

Height

23.5 mm

Depth

40 mm

Embedding depth

31.6 mm

Width

23.5 mm

Mounting position

vertical

EU RoHS Directive

Under investigation

Environmental Disclosure

ENVPEP120506EN

Material

Material

plastic

Others

Package 1 Weight

24 g

Package 1 Height

27 mm

Package 1 width

30 mm

Package 1 Length

58 mm
Show all specifications

Frequently Asked Questions

hide show

Is there a timer switch in Saturn Series available?

No, however you can use the timer 2031VETR  as a remote timer ie place it in the ceiling and have cables running to a Saturn Series plate with a bell press. When the bell press is pressed it will trigger the 2031VETR.

Bell press part number is a 60PBBP

The saturn series plate less mechanism is 4061VH.

Can a run on timer be operated remotely by bell press mech?

Yes, the 2031VETR-WE can be operated by a 30PBBPL-WE

What is the part number for a 30 series bell press switch mech with LED indication?

The part number for a 30 series bell press switch mech with LED indication is - 30PBBPL

For further information ,visit link below:-
https://www.clipsal.com/Trade/search-results?q=30PBBPL
User-added image

What is the momentary press mech switch for the Saturn Range

It is 60PBBPL

What is the press mech in the Saturn range?

 The 60PBBPL is a 2way momentary 60 series mech.

What is the code for a Push Button Switch, Momentary Action in the Saturn Zen range?

The 60PBBPL is the Momentary Action Push Button Switch to use with the Saturn Zen range

Please visit the technical page at clipsal.com for further information about the 60PBBPL - https://www.clipsal.com/Trade/Products/ProductDetail?catno=60PBBPL

Show More
Homeowner relaxed in their kitchen with Saturn 4000 light switches

Range

Simplicity. Beauty. Style.

The Clipsal Saturn 4000 Series is specifically designed to offer a seamless electrical solution for the home. It offers stylish wall switches and sockets with the choice of glass-look fascia’s in three distinctive colours, or the metallic finishes of Saturn Horizon.

Saturn 4000 goes beyond simple light switches and power points. It is a complete electrical accessory solution that gives superior functionality while enhancing your home’s décor.

Its revolutionary push button technology gives you smooth reliable operation at the touch of a button. And the architecturally designed fascias look great and are a breeze to clean.
