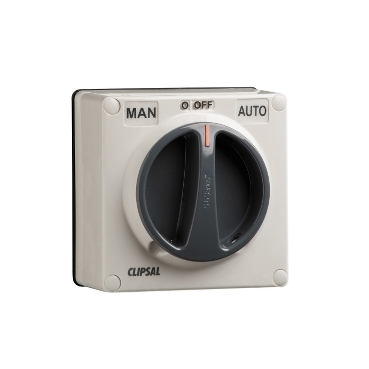

Switch Surf 4P 20A C/Over Less Enclosure (With 7 Series Mechanism)

Back to Surface Switches - IP66 Home 56 Series Surface Switches - IP66

Grey | Switch Surf 4P 20A C/Over Less Enclosure (With 7 Series Mechanism)

Switch Surf 4P 20A C/Over Less Enclosure (With 7 Series Mechanism)

Item Number: 56SW420COLE-GY

Retail
N/A
RRP (Inc. GST)
Where To Buy

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth119 mm

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Sustainable offer status

Green Premium product

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: grey

Market segment

  • industry
  • small commercial
  • utility

      • Physical

      Environmental Disclosure

      ENVPEP120809EN

      Mercury free

      Yes

      REACh Regulation

      Reference contains Substances of Very High Concern above the threshold

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      EU RoHS Directive

      Compliant

      RoHS exemption information

      Yes

      Device presentation

      basic element with full cover plate

      Switch function

      4-pole

      Control type

      rotary knob

      Number of poles

      4

      Device mounting

      surface

      Local signalling

      without

      [Ue] rated operational voltage

      500 V AC 50 Hz

      Rated current

      20 A

      Height

      107 mm

      Width

      101 mm

      Depth

      119 mm

      Net weight

      0.001 kg

      Ambient air temperature for operation

      -25-75 °C

      IP degree of protection

      IP66 conforming to AS 60529

      Standards

      AS/NZS 3133

      Material

      Material

      PC (polycarbonate)

      Others

      Package 1 Weight

      0.001 kg

      Handle colour

      grey

      Suitability for isolation

      yes

      Poles description

      4P

      Tightening torque

      0.8 N.m

      Breaking capacity

      20 kA

      Rotary handle padlocking

      2 padlocks 8-8 mm

      Marking location

      marking on surface

      Targeted country

      Australia
      Show all specifications

      Frequently Asked Questions

      hide show

      Is the 56SW420CO able to be locked in both positions ?

      There is a hole to lock in one position , if there is a need to lock in both positions the switch can be drilled to have a hole to lock in both positions..

      Is there a 3 position 56 series switch (On - Off - On)?

      We have the 56 series change over switches:
      56SW120CO - S.P. 20A Changeover
      56SW320CO - T.P. 20A Changeover
      56SW332CO - T.P. 32A Changeover
      Also the Forward/Reverse switch:
      56SW320FR - S.P. or T.P. 20A forward/reverse

      Are there a choice of labels with the PDL 56SW120CO range

      Yes the units come with stickers

      Is there an IP66 Change over switch 20A?

      Yes 56SW220CO is IP66.

      What is the part number for a PDL 56 Series switch with a 10amp changeover

      It is not available in 10amp version, you can use PDL 56SW120CO which is a 20 amp version.

      Is the 56SW420 available in Resistant Orange?

      Yes. It is available in Resistant Orange and the part number is 56SW420-RO.
