Surface Switch, 1 Gang, 3 Pole, 500VAC, 32A, with 2A control Circuit Switch

Back to Surface Switches - IP66 Home 56 Series Surface Switches - IP66

Grey | Surface Switch, 1 Gang, 3 Pole, 500VAC, 32A, with 2A control Circuit Switch

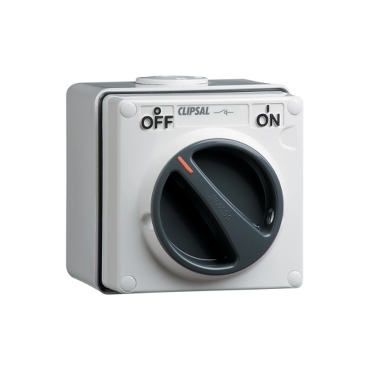

Surface Switch, 1 Gang, 3 Pole, 500VAC, 32A, with 2A control Circuit Switch

Item Number: 56SW332CX-GY

Where To Buy

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth108 mm

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Market segment

  • utility
  • small commercial
  • industry

Sustainable offer status

Green Premium product

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: grey

Physical

Switch function

3-pole

Control type

rotary knob

Number of poles

3

Device mounting

surface

Fixing mode

by screws

Local signalling

without

[Ue] rated operational voltage

500 V AC 50 Hz

Rated current

32 A

Marking

ON-OFF

Height

107 mm

Width

101 mm

Depth

108 mm

Net weight

0.68 kg

Ambient air temperature for operation

-25...75 °C

IP degree of protection

IP66 conforming to AS 60529

Standards

AS/NZS 3133

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120809EN

Device presentation

basic element with full cover plate

Material

Material

PC (polycarbonate)

Others

Poles description

3P

[Icm] rated short-circuit making capacity

2.1 kA

Tightening torque

0.8 N.m

Marking location

marking on surface

Breaking capacity

32 kA

Targeted country

Australia

Rotary handle padlocking

2 padlocks 8-8 mm

[Icw] rated short-time withstand current

1.5 kA for 1 s

[Uimp] rated impulse withstand voltage

4 kV

Motor M-rating AS3133

M180 at 500 V

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

690.0 g

Package 1 Height

11 cm

Package 1 width

10 cm

Package 1 Length

10.5 cm

Handle colour

grey

Suitability for isolation

yes
Show all specifications
