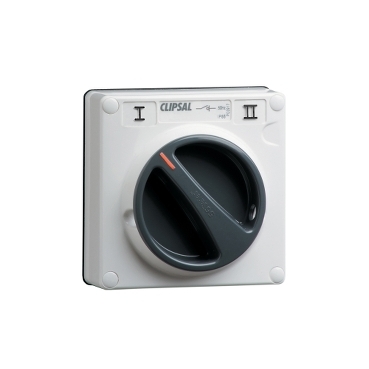

Surface Switch PVC 1 Gang 2 Way 15A Less Enclosure

Grey | Surface Switch PVC 1 Gang 2 Way 15A Less Enclosure

Surface Switch PVC 1 Gang 2 Way 15A Less Enclosure

Item Number: 56SW115/2LE-GY

Retail
$244.54
RRP (Inc. GST)
Colour Grey (GY)
  • Grey 1 PCE
  • Resistant Orange 1 PCE
  • Resistant White Electric 1 PCE

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth70 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: grey

Market segment

  • industry
  • small commercial
  • utility
    • Sustainable offer status

      Green Premium product

      Physical

      Device presentation

      basic element with full cover plate

      Switch function

      1-pole

      Control type

      rotary knob

      Number of poles

      1

      Device mounting

      surface

      Local signalling

      without

      [Ue] rated operational voltage

      250 V AC 50 Hz

      Rated current

      15 A

      Marking

      ON-OFF

      Height

      107 mm

      Width

      101 mm

      Depth

      70 mm

      Net weight

      0.182 kg

      Ambient air temperature for operation

      -25-75 °C

      IP degree of protection

      IP66 conforming to AS 60529

      Standards

      AS/NZS 3133

      REACh Regulation

      Reference contains Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120809EN

      Material

      Material

      PC (polycarbonate)

      Others

      Handle colour

      grey

      Suitability for isolation

      no

      Poles description

      1P

      Tightening torque

      0.8 N.m

      Breaking capacity

      15 kA

      Motor M-rating AS3133

      M80 at 250 V

      Rotary handle padlocking

      2 padlocks 8-8 mm

      Marking location

      marking on surface

      Targeted country

      Australia

      Package 1 Weight

      0.182 kg
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • CAD Files and Packs

      • Technical Data Catalogues

      • Specifications

      • Certificates (MSDS)

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      Is there a 56 series 10amp switch for 2 way switching?

      Yes, refer to the following part name: 56SW110/2-GY

      How do I get a 56 Series Double outlet?

      56E4 (4 Gang Base) + 56SO310LE (socket outlet) X2 + 56SW110LE (Switch) X2

      What is the part number for a 2-way industrial switch?

      There are 2 options.
      1. The Wilco Metal Clad Series WMS110-TW, 10A, 2-WAY, single pole
      2. The 56 Series 56SW110/2, 10A, 2-WAY, single pole

      Is the 56C310 available with a key switch?

      No, unfortunately this is not a standard part. However it can be made out of parts.

      You would need:
      56K1SW1156LE or 56K2SW115LE
      56SO310LE
      56E2

      For further information please visit https://www.clipsal.com/Trade/search-results?q=56

      What size cable doe the PDL 56SO316/240 accommodate

      Cable size up to 6mmsq

      Do we have a 110V version of the 56SO316/240 ?

      Code =  PDL56SO316110LEYL
