Surface Switch, 1 Gang, 250VAC, 10A

Back to Surface Switches - IP66 Home 56 Series Surface Switches - IP66

Chemical Grey | Surface Switch, 1 Gang, 250VAC, 10A

Surface Switch, 1 Gang, 250VAC, 10A

Item Number: 56SW110-CG

Where To Buy

Datasheet

Download

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth83 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: chemical grey

Market segment

  • industry
  • small commercial
  • utility

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element with full cover plate

Switch function

1-pole

Control type

rotary knob

Number of poles

1

Device mounting

surface

Fixing mode

by screws

Local signalling

without

[Ue] rated operational voltage

250 V AC 50 Hz

Rated current

10 A

Marking

ON-OFF

Height

107 mm

Width

101 mm

Depth

83 mm

Net weight

0.46 kg

Ambient air temperature for operation

-25...75 °C

IP degree of protection

IP66 conforming to AS 60529

Standards

AS/NZS 3133

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120809EN

Material

Material

PC (polycarbonate)

Others

Package 1 Bare Product Quantity

1

Handle colour

grey

Suitability for isolation

no

Poles description

1P

Tightening torque

0.8 N.m

Marking location

marking on surface

Breaking capacity

10 kA

Targeted country

Australia

Rotary handle padlocking

2 padlocks 8-8 mm

Motor M-rating AS3133

M80 at 250 V

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.2 cm

Package 1 Width

10.6 cm

Package 1 Length

10.8 cm

Package 1 Weight

384.0 g
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Environmental Disclosure

  • Specifications

  • Declaration of Conformity

  • Certificates (MSDS)

56 Series Switch
ZIP

56 Series Switch

VERSION

1.0

DATE

01 Jan 1900

REVISION

-----

DOWNLOAD (ZIP) 173.6 KB
Revit Pack 56 Series
ZIP

Revit Pack 56 Series

VERSION

1.0

DATE

01 Jan 1900

REVISION

-----

DOWNLOAD (ZIP) 2.8 MB
56 Series Performance in Power, 20139
ZIP

56 Series Performance in Power, 20139

VERSION

1.0

DATE

01 Jan 1900

REVISION

-----

DOWNLOAD (ZIP) 375.2 KB
General Instructions - 56SW Series and Weatherprotected Surface Switches technical specifications
ZIP

General Instructions - 56SW Series and Weatherprotected Surface Switches technical specifications

VERSION

1.0

DATE

02 Aug 2022

REVISION

-----

DOWNLOAD (ZIP) 297.6 KB
56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today’s industry, 25510
ZIP

56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today’s industry, 25510

VERSION

2.0

DATE

02 Aug 2022

REVISION

-----

DOWNLOAD (ZIP) 7 MB
IP66, SOCKET SWT SURF 5PIN 32A - Product Environmental Profile
ZIP

IP66, SOCKET SWT SURF 5PIN 32A - Product Environmental Profile

VERSION

1.0

DATE

06 Oct 2022

REVISION

-----

DOWNLOAD (ZIP) 548 KB
Technical Specifications - 56 Series Industrial Switchgear
ZIP

Technical Specifications - 56 Series Industrial Switchgear

VERSION

1.0

DATE

01 Jan 1900

REVISION

-----

DOWNLOAD (ZIP) 170.9 KB
Technical Specifications - Motor Control Gear
ZIP

Technical Specifications - Motor Control Gear

VERSION

1.0

DATE

01 Jan 1900

REVISION

-----

DOWNLOAD (ZIP) 177.9 KB

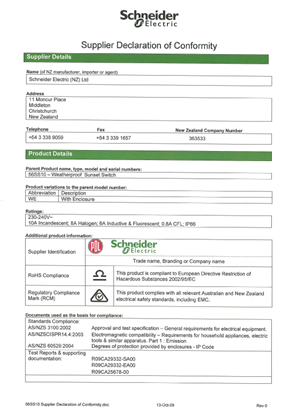

56 Series, 56SS10, Supplier Declaration of Conformity
