Pendant Outlet, 250V, 10A, 3 Flat PIN, 2 Pole

Back to Switched Pendant Outlets - IP66 Home 56 Series Switched Pendant Outlets - IP66

Resistant White Electric | Pendant Outlet, 250V, 10A, 3 Flat PIN, 2 Pole

Pendant Outlet, 250V, 10A, 3 Flat PIN, 2 Pole

Item Number: 56SPO310-RW

Retail
$231
RRP (Inc. GST)
Where To Buy

Product Dimensions

Width icon

Width83 mm

Height icon

Height83 mm

Depth icon

Depth183 mm

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

pendant outlet

Device application

power supply

Market segment

  • small commercial
  • industry
  • utility

      • Sustainable offer status

      Green Premium product

      Physical

      Number of poles

      2

      [In] rated current

      10 A

      [Ue] rated operational voltage

      250 V AC 50 Hz conforming to EN 60309-2

      Connections - terminals

      screw terminals 0.75-2.5 mm²

      Connections - terminals

      screw terminal

      Socket number

      1

      Outlet standard

      industrial

      Cable outer diameter

      7-10 mm

      Cable entry

      cable gland

      Net weight

      0.26 kg

      Depth

      183 mm

      Width

      83 mm

      Height

      83 mm

      IP degree of protection

      IP66 conforming to AS 60529

      Ambient air temperature for operation

      -25-75 °C

      Standards

      AS/NZS 3120

      REACh Regulation

      Reference contains Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP121020EN

      Material

      Material

      PBT (polybutylene terephthalate): housing

      Contacts material

      sleeves: brass

      Others

      Plug, socket category

      low voltage

      Plug, socket, control station shape

      straight

      Poles description

      1P + N + E

      Voltage colour

      blue

      Duration

      6 h

      Thread type

      M20

      Targeted country

      Australia

      Unit Type of Package 1

      PCE

      Number of Units in Package 1

      1

      Package 1 Weight

      266 g

      Package 1 Height

      8.2 cm

      Package 1 width

      9.8 cm

      Package 1 Length

      17.8 cm
      Show all specifications

      Documents & downloads

      hide show
      Filter items

      • All

      • CAD Files and Packs

      • Product Brochures

      • Technical Data Catalogues

      • Installation Instruction

      • Specifications

      • Declaration of Conformity

      • Corporate Marketing

      Revit Pack 56 Series
      ZIP

      Revit Pack 56 Series

      DATE

      10 Nov 2020

      VERSION

      1

      DOWNLOAD

      (2.8 MB)
      56 Series Pendant Outlet 3 pin
      stp

      56 Series Pendant Outlet 3 pin

      DATE

      21 Jun 2018

      VERSION

      1

      DOWNLOAD

      (250.9 KB)
      Residential Energy Efficiency Guide, 20097
      PDF

      Residential Energy Efficiency Guide, 20097

      DATE

      24 Sep 2020

      VERSION

      1

      DOWNLOAD

      (5.8 MB)
      Clipsal Residential Energy-Efficient Solutions, 25482
      PDF

      Clipsal Residential Energy-Efficient Solutions, 25482

      DATE

      24 Sep 2020

      VERSION

      1

      DOWNLOAD

      (6.7 MB)
      Energy Efficiency Trade Product Guide, 20742
      PDF

      Energy Efficiency Trade Product Guide, 20742

      DATE

      12 Oct 2018

      VERSION

      1

      DOWNLOAD

      (1.7 MB)
      Insulated Safety Pin Products, Our plug for safety
      PDF

      Insulated Safety Pin Products, Our plug for safety

      DATE

      13 Dec 2017

      VERSION

      1

      DOWNLOAD

      (585.7 KB)
      56 Series Performance in Power, 20139
      PDF

      56 Series Performance in Power, 20139

      DATE

      13 Dec 2017

      VERSION

      1

      DOWNLOAD

      (375.2 KB)
      Less hassle, more grunt. 56 Series Heavy-Duty Switchgear Range Extension 56SWHS Shallow and 56SWH Deep Surface Switches, 114104
      PDF

      Less hassle, more grunt. 56 Series Heavy-Duty Switchgear Range Extension 56SWHS Shallow and 56SWH Deep Surface Switches, 114104

      DATE

      01 Dec 2017

      VERSION

      1

      DOWNLOAD

      (1022.4 KB)
      56 DOL9 Series 2 - Direct On-Line Motor Starter
      PDF

      56 DOL9 Series 2 - Direct On-Line Motor Starter

      DATE

      19 Sep 2017

      VERSION

      1

      DOWNLOAD

      (410.5 KB)
      Clipsal Lifesavers in Electrical Protection - 22498
      PDF

      Clipsal Lifesavers in Electrical Protection - 22498

      DATE

      19 Sep 2017

      VERSION

      1

      DOWNLOAD

      (1.4 MB)
      56EV2 Series - Safety comes first, 14423
      PDF

      56EV2 Series - Safety comes first, 14423

      DATE

      21 Dec 2016

      VERSION

      1

      DOWNLOAD

      (219.1 KB)
      56 Series High & Mighty Pendant Outlets, 13186
      PDF

      56 Series High & Mighty Pendant Outlets, 13186

      DATE

      21 Dec 2016

      VERSION

      1

      DOWNLOAD

      (573.4 KB)
      56 Series, IP66 Plugs and Socket Connectors, Tougher Plugs for a Safer Workplace, 24132
      PDF

      56 Series, IP66 Plugs and Socket Connectors, Tougher Plugs for a Safer Workplace, 24132

      DATE

      21 Dec 2016

      VERSION

      1

      DOWNLOAD

      (4.9 MB)
      Extra Tough Gaskets can wash down at 1600psi
      PDF

      Extra Tough Gaskets can wash down at 1600psi

      DATE

      21 Dec 2016

      VERSION

      1

      DOWNLOAD

      (522 KB)
      56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today�s industry, 25510
      pdf

      56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today�s industry, 25510

      DATE

      27 Jul 2021

      VERSION

      2

      DOWNLOAD

      (7 MB)
      Installation Instructions - F1996/02 - 56SP03XX Series 250V Pendant Socket (IP66), 26837
      PDF

      Installation Instructions - F1996/02 - 56SP03XX Series 250V Pendant Socket (IP66), 26837

      DATE

      21 Dec 2016

      VERSION

      1

      DOWNLOAD

      (585.3 KB)
      Technical Specifications - 56 Series Industrial Switchgear
      PDF

      Technical Specifications - 56 Series Industrial Switchgear

      DATE

      21 Dec 2016

      VERSION

      1

      DOWNLOAD

      (170.9 KB)
      Technical Specifications - Motor Control Gear
      PDF

      Technical Specifications - Motor Control Gear

      DATE

      21 Dec 2016

      VERSION

      1

      DOWNLOAD

      (177.9 KB)

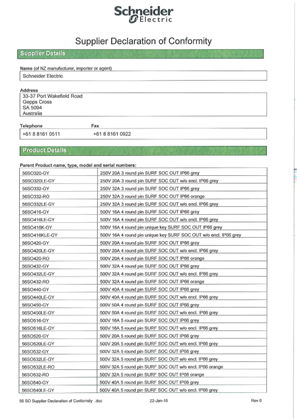

      Declaration of Conformity 56SO550
      pdf

      Declaration of Conformity 56SO550

      DATE

      19 Oct 2021

      VERSION

      1

      DOWNLOAD

      (578.8 KB)
      How to make sure your new home meets official energy efficiency standards, 25189
      PDF

      How to make sure your new home meets official energy efficiency standards, 25189

      DATE

      21 Dec 2016

      VERSION

      1

      DOWNLOAD

      (1004.9 KB)

      Frequently Asked Questions

      hide show

      What is the IP rating of a SS15?

      There is no IP rating for a SS15.
      Suitable for use in food processing plants, abattoirs and other areas subject to moisture contact caused by hosing down the area.
      It will not prevent water ingress due to direct hosing.
      For IP rating use a 56SPO310 which is IP66 rated.

      Please go to the website via the following link https://www.clipsal.com/Trade/Products/ProductDetail?catno=56SPO310 and check under the Documentation Tab for more information.


      Is there a pendant conversion kit for 56CSC310, 56 series extension socket?

      Unfortunately not we do not have pendant conversion kit for 56CSC310. 56SHM does not fit 56CSC310. However, we have 56SPO310 which is a 3 flat pin 10A switched pendant outlet.

      For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=56SPO310

      What is part number for suspension hook to suit 56SPO310?

      The part number for suspension hook to suit is a 56SHM.
