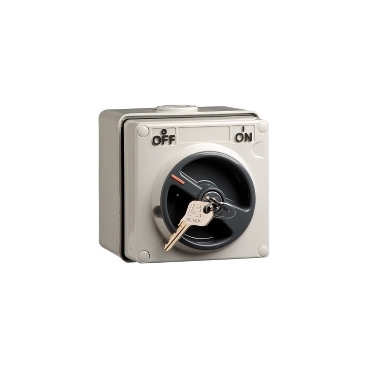

Surface Switch, 2 Pole, 500VAC, 20A, Common Key Lock, On/Off Locking Position

Grey | Surface Switch, 2 Pole, 500VAC, 20A, Common Key Lock, On/Off Locking Position

Surface Switch, 2 Pole, 500VAC, 20A, Common Key Lock, On/Off Locking Position

Item Number: 56K2SW220CK-GY

Retail
$518.82
RRP (Inc. GST)

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth112 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: grey

Market segment

  • industry
  • utility
  • small commercial
    • Sustainable offer status

      Green Premium product

      Physical

      Device presentation

      basic element with full cover plate

      Switch function

      2-pole

      Control type

      rotary knob

      Number of poles

      2

      Device mounting

      surface

      Fixing mode

      by screws

      Local signalling

      without

      [Ue] rated operational voltage

      250 V AC 50 Hz

      Rated current

      20 A

      Marking

      ON-OFF

      Height

      107 mm

      Width

      101 mm

      Depth

      112 mm

      Net weight

      0.55 kg

      Actuator

      key

      Ambient air temperature for operation

      -25-75 °C

      IP degree of protection

      IP66 conforming to AS 60529

      Standards

      AS/NZS 3133

      REACh Regulation

      Reference contains Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120809EN

      Material

      Material

      PC (polycarbonate)

      Others

      Handle colour

      grey

      Suitability for isolation

      yes

      Poles description

      2P

      [Icm] rated short-circuit making capacity

      1 kA

      Tightening torque

      0.8 N.m

      Marking location

      marking on surface

      Breaking capacity

      20 kA

      Targeted country

      Australia

      Rotary handle padlocking

      2 padlocks 8-8 mm

      [Icw] rated short-time withstand current

      1.2 kA for 1 s

      [Uimp] rated impulse withstand voltage

      4 kV

      Motor M-rating AS3133

      M220 at 250 V

      Package 1 Weight

      0.55 kg
