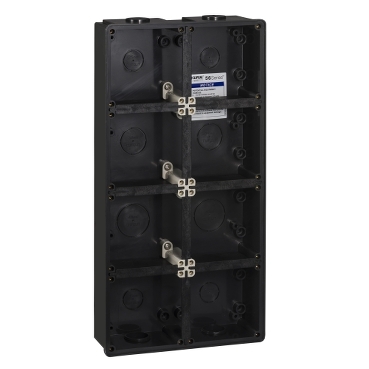

Clipsal - 56 Series, Enclosures and Boxes, Mounting Enclosures, 8 Gang (294 x 101 x 63mm high)

Back to Mounting Enclosures (Back Boxes) Home 56 Series Mounting Enclosures (Back Boxes)

Chemical Grey | Clipsal - 56 Series, Enclosures and Boxes, Mounting Enclosures, 8 Gang (294 x 101 x 63mm high)

Clipsal - 56 Series, Enclosures and Boxes, Mounting Enclosures, 8 Gang (294 x 101 x 63mm high)

Item Number: 56E8-CG

Where To Buy

Datasheet

Download

Product Dimensions

Width icon

Width198 mm

Height icon

Height396 mm

Depth icon

Depth63 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Colour

dark grey

Physical

Number of gangs

8 gangs

Device mounting

surface

Mounting mode

wall-mounted

Length

63 mm

Width

198 mm

Depth

63 mm

Height

396 mm

Net weight

1.17 kg

IP degree of protection

IP66 conforming to AS 60529

Standards

AS 3100

Ambient air temperature for operation

-25...75 °C

EU RoHS Directive

Compliant

Material

Material

PVC (polyvinyl chloride): housing

Others

Package 1 Bare Product Quantity

1

Cable entry number

4

Number of mounting holes

28

Compatibility code

56 Series covers

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.5 cm

Package 1 Width

20 cm

Package 1 Length

40 cm

Package 1 Weight

1275.5 g
Show all specifications
