DOL Motor Starter, 4kW, 240V Coil, 2 Push Button, LRD14

Grey | DOL Motor Starter, 4kW, 240V Coil, 2 Push Button, LRD14

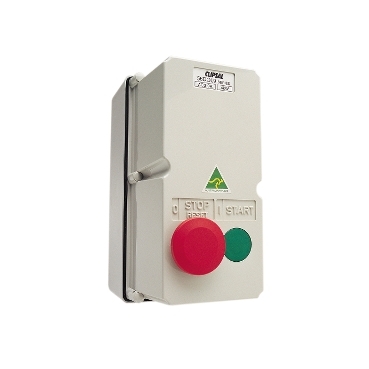

DOL Motor Starter, 4kW, 240V Coil, 2 Push Button, LRD14

Item Number: 56DOL9/10B-GY

Retail
N/A
RRP (Inc. GST)
Colour Grey (GY)
  • Grey 1 PCE
  • Resistant Orange 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Product or component type

switch

Colour

cover: grey

Product destination

2 push-button

Market segment

  • industry
  • utility
  • small commercial
    • Sustainable offer status

      Green Premium product

      Physical

      Control type

      push-button

      [Ie] rated operational current

      9 A

      Connections - terminals

    • screw terminal solid
    • screw terminal stranded
      • Height

        204 mm

        Width

        101 mm

        Net weight

        1.44 kg

        IP degree of protection

        IP66 conforming to AS 60529

        Ambient air temperature for operation

        -25-75 °C

        Standards

      • AS/NZS 3100
      • AS/NZS 3133
        • REACh Regulation

          Reference contains Substances of Very High Concern above the threshold

          EU RoHS Directive

          Compliant

          Mercury free

          Yes

          RoHS exemption information

          Yes

          China RoHS Regulation

          Product out of China RoHS scope. Substance declaration for your information

          Environmental Disclosure

          ENVPEP120809EN

          Others

          Motor starter type

          direct on line

          [Us] rated supply voltage

          240 V AC 50 Hz

          Network type

          AC

          Rated operational power in W

          4 kW at 240 V (AC-3)

          Overload current

          7...10 A

          Tightening torque

          0.8 N.m

          Network number of phases

          3 phases

          Targeted country

          Australia

          Suitability for isolation

          no

          Package 1 Weight

          1.44 kg
          Show all specifications

          Documents & downloads

          hide show
          Filter items
          • All

          • Product Brochures

          • CAD Files and Packs

          • Technical Data Catalogues

          • Specifications

          • Corporate Marketing

          Frequently Asked Questions

          hide show

          Is 56DOL9/10 available in Orange?

          Yes. Part number 56DOL9/10 is available in Orange as special order

          Is there an alternative to the 56DOL9/10 as it is a made to order product?

          Alternatively there is a LE1D12N7548EM with the overload LRD14.

          Note: this part will not fit on an existing 56 Series enclosure wherefore the 56DOL9/10 Will.

          What is the replacement overload to suit the 56ROL9/01?

          The replacement overload for the 56ROL9/10 is a LRD14.

          Relay Setting Range (A) DOL 415V (kW) Star Delta 415V (kW)  For use with the contactor LC1 Part Number
          7-10 Amp 4kW - D09...D38 LRD14



          For further information please visit www.clipsal.com/Trade/Products/ProductDetail?catno=LRD14

          What is a DOL starter 3kw, 7amp

           You can use a 56DOL9LOB and select Tesys overload to suit

          Does part number 56DOL9/4 come with din rail?

          No. Unfortunately, part number does not come with din rail.
