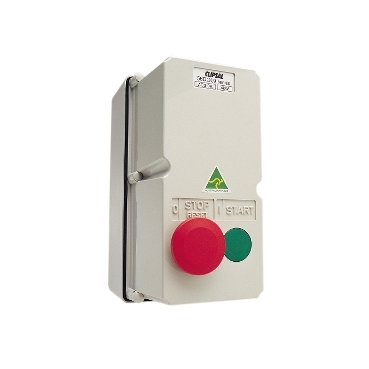

56 Series 415V Motor Starter. Temperature Range -25C to +75C

Grey | 56 Series 415V Motor Starter. Temperature Range -25C to +75C

56 Series 415V Motor Starter. Temperature Range -25C to +75C

Item Number: 56DOL16/LO-GY

Retail
N/A
RRP (Inc. GST)
Colour Grey (GY)
  • Grey 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Product or component type

switch

Colour

cover: grey

Market segment

  • industry
  • small commercial
  • utility
    • Sustainable offer status

      Green Premium product

      Physical

      Control type

      push-button

      Connections - terminals

    • screw terminal solid
    • screw terminal stranded
      • Height

        204 mm

        Width

        101 mm

        Net weight

        1.327 kg

        IP degree of protection

        IP66 conforming to AS 60529

        Ambient air temperature for operation

        -25-75 °C

        Standards

      • AS/NZS 3100
      • AS/NZS 3133
        • REACh Regulation

          Reference contains Substances of Very High Concern above the threshold

          EU RoHS Directive

          Compliant

          Mercury free

          Yes

          RoHS exemption information

          Yes

          China RoHS Regulation

          Product out of China RoHS scope. Substance declaration for your information

          Environmental Disclosure

          ENVPEP120809EN

          Others

          Motor starter type

          direct on line

          [Us] rated supply voltage

          415 V AC 50 Hz

          Network type

          AC

          Rated operational power in W

          7.5 kW at 415 V (AC-3)

          Tightening torque

          0.8 N.m

          Targeted country

          Australia

          Suitability for isolation

          no

          Unit Type of Package 1

          PCE

          Number of Units in Package 1

          1

          Package 1 Weight

          1257 g

          Package 1 Height

          155 mm

          Package 1 width

          100 mm

          Package 1 Length

          200 mm
          Show all specifications

          Documents & downloads

          hide show
          Filter items
          • All

          • Product Brochures

          • CAD Files and Packs

          • Technical Data Catalogues

          • Specifications

          • Corporate Marketing

          Frequently Asked Questions

          hide show

          What is the alternate code for a PDL 56MS400LEGY

          PDL 56MS400LEGY no longer available replaced by PDL 56DOL12LOGY

          Is 56DOL9/10 available in Orange?

          Yes. Part number 56DOL9/10 is available in Orange as special order

          Is there a switch combination in the 56 series for a 56SO316/6?

          No, there is no combination only the socket outlet, less enclosure.

          For more information, please refer to the link:
          https://www.clipsal.com/Trade/Products/ProductDetail?catno=56SO316/6LE


          What is a DOL starter 3kw, 7amp

           You can use a 56DOL9LOB and select Tesys overload to suit

          Is there an alternative to the 56DOL9/10 as it is a made to order product?

          Alternatively there is a LE1D12N7548EM with the overload LRD14.

          Note: this part will not fit on an existing 56 Series enclosure wherefore the 56DOL9/10 Will.
