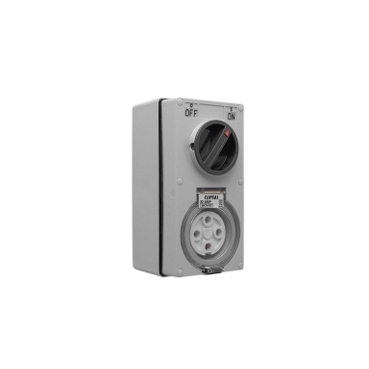

Socket Switched Interlocked

Grey | Socket Switched Interlocked

Socket Switched Interlocked

Item Number: 56CVI432-GY

Retail
N/A
RRP (Inc. GST)

Product Dimensions

Width icon

Width101 mm

Height icon

Height204 mm

Depth icon

Depth108 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

  • industry
  • small commercial
  • utility
    • Sustainable offer status

      Green Premium product

      Physical

      Number of poles

      4

      Outlet standard

      Australian/New Zealand

      Number of power socket outlets

      1 protective cover

      [In] rated current

      32 A

      [Ue] rated operational voltage

      500 V AC 50 Hz

      Protection type

      without protection

      Device mounting

      surface

      Connections - terminals

      screw terminals cable(s) 4-16 mm²

      Depth

      108 mm

      Width

      101 mm

      Height

      204 mm

      Standards

    • AS/NZS 3133
    • AS/NZS 3123
      • Ambient air temperature for operation

        -25-75 °C

        IP degree of protection

        IP66 conforming to AS 60529

        REACh Regulation

        Reference contains Substances of Very High Concern above the threshold

        EU RoHS Directive

        Compliant

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

        Product out of China RoHS scope. Substance declaration for your information

        Environmental Disclosure

        ENVPEP120809EN

        Material

        Material

        polycarbonate: cover

        Contacts material

        pins: phosphor bronze

        Others

        Number of Units in Package 1

        1

        Package 1 width

        101 mm

        Package 1 Height

        108 mm

        Package 1 Length

        204 mm

        Unit Type of Package 1

        PCE

        Plug, socket category

        low voltage

        Plug, socket, control station shape

        straight

        Number of modules

        3

        Poles description

        3P + E

        Electrical connection

        industrial connector

        Targeted country

        Australia

        Package 1 Weight

        1.1 kg
        Show all specifications

        Documents & downloads

        hide show
        Filter items
        • All

        • CAD Files and Packs

        • Product Brochures

        • Technical Data Catalogues

        • Installation Instruction

        • Product Environmental

        • Specifications

        • Corporate Marketing

        Frequently Asked Questions

        hide show

        What is part number for extension socket to suit 56AI432?

        The part number is 56CSC432 which is the extension socket to suit 56AI432.

        Is the cover for 56cv432 available as a spare part.

        No, not available as a spare part.

        Is there a 56 series outlet to suit a 56P432 that restricts the plug from being removed when switched on?

        Yes, use of the 56CVI432 series will restrict removal while the outlet is switched on as there is an interlocking pin to hold the plug in place.

        Some of the key features are:
        • 32 A thermal current
        • Internal interlock switch
        • 4 round pins
        • 500V
        • IP66
        • 3 Pole
        • Vertical
        For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=56CVI432




        Does the 56CVI532 need to be in the off position for the plug to be removed?

        Yes, the 56CVI532 does need to be off to either insert or remove the plug.

        Some of the key features are:
        • 32 A thermal current
        • 5 round pins
        • 3 pole
        • Internal interlock switch



        Is the 56CV532 available in white with RCD protection

        Need to use 56CV532 + 56E4 + 56CB4 + RCCB

        What is the rating on the Neutral for the PDL 56CV532

         The rating is 32A
