Switched Socket Outlet, 500V, 50A, 5 Round PIN, IP66, 3 Pole, Surface Mount

Back to Surface Mounting Combinations - IP66 Home 56 Series Surface Mounting Combinations - IP66

Chemical Grey | Switched Socket Outlet, 500V, 50A, 5 Round PIN, IP66, 3 Pole, Surface Mount

Switched Socket Outlet, 500V, 50A, 5 Round PIN, IP66, 3 Pole, Surface Mount

Item Number: 56C550-CG

Where To Buy

Product Dimensions

Width icon

Width101 mm

Height icon

Height204 mm

Depth icon

Depth108 mm

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Market segment

  • small commercial
  • industry
  • utility

Sustainable offer status

Green Premium product

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Physical

Number of poles

5

Outlet standard

Australian/New Zealand

Number of power socket outlets

1 protective cover

[In] rated current

50 A

[Ue] rated operational voltage

500 V AC 50 Hz

Protection type

without protection

Device mounting

surface

Connections - terminals

screw terminals cable(s) 10-16 mm²

Depth

108 mm

Width

101 mm

Height

204 mm

Standards

  • AS/NZS 3123
  • AS/NZS 3133

Ambient air temperature for operation

-25...75 °C

IP degree of protection

IP66 conforming to AS 60529

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120809EN

Material

Material

ABS (acrylonitrile butadiene-styrene): cover

Contacts material

pins: phosphor bronze

Others

Plug, socket category

low voltage

Plug, socket, control station shape

straight

Number of modules

3

Poles description

3P + N + E

Electrical connection

industrial connector

Targeted country

Australia

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

1.44 kg

Package 1 Height

10.8 cm

Package 1 width

10.1 cm

Package 1 Length

20.4 cm

Unit Type of Package 2

CAR

Number of Units in Package 2

12

Package 2 Weight

17.28 kg

Package 2 Height

21 cm

Package 2 width

34.8 cm

Package 2 Length

44.5 cm
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Product Environmental

  • Specifications

  • Corporate Marketing

Revit Pack 56 Series
ZIP

Revit Pack 56 Series

DATE

10 Nov 2020

VERSION

1

DOWNLOAD

(2.8 MB)
Residential Energy Efficiency Guide, 20097
PDF

Residential Energy Efficiency Guide, 20097

DATE

24 Sep 2020

VERSION

1

DOWNLOAD

(5.8 MB)
Clipsal Residential Energy-Efficient Solutions, 25482
PDF

Clipsal Residential Energy-Efficient Solutions, 25482

DATE

24 Sep 2020

VERSION

1

DOWNLOAD

(6.7 MB)
Energy Efficiency Trade Product Guide, 20742
PDF

Energy Efficiency Trade Product Guide, 20742

DATE

12 Oct 2018

VERSION

1

DOWNLOAD

(1.7 MB)
Insulated Safety Pin Products, Our plug for safety
PDF

Insulated Safety Pin Products, Our plug for safety

DATE

13 Dec 2017

VERSION

1

DOWNLOAD

(585.7 KB)
56 Series Performance in Power, 20139
PDF

56 Series Performance in Power, 20139

DATE

13 Dec 2017

VERSION

1

DOWNLOAD

(375.2 KB)
Less hassle, more grunt. 56 Series Heavy-Duty Switchgear Range Extension 56SWHS Shallow and 56SWH Deep Surface Switches, 114104
PDF

Less hassle, more grunt. 56 Series Heavy-Duty Switchgear Range Extension 56SWHS Shallow and 56SWH Deep Surface Switches, 114104

DATE

01 Dec 2017

VERSION

1

DOWNLOAD

(1022.4 KB)
56 DOL9 Series 2 - Direct On-Line Motor Starter
PDF

56 DOL9 Series 2 - Direct On-Line Motor Starter

DATE

19 Sep 2017

VERSION

1

DOWNLOAD

(410.5 KB)
Clipsal Lifesavers in Electrical Protection - 22498
PDF

Clipsal Lifesavers in Electrical Protection - 22498

DATE

19 Sep 2017

VERSION

1

DOWNLOAD

(1.4 MB)
56EV2 Series - Safety comes first, 14423
PDF

56EV2 Series - Safety comes first, 14423

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(219.1 KB)
56 Series High & Mighty Pendant Outlets, 13186
PDF

56 Series High & Mighty Pendant Outlets, 13186

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(573.4 KB)
56 Series, IP66 Plugs and Socket Connectors, Tougher Plugs for a Safer Workplace, 24132
PDF

56 Series, IP66 Plugs and Socket Connectors, Tougher Plugs for a Safer Workplace, 24132

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(4.9 MB)
Extra Tough Gaskets can wash down at 1600psi
PDF

Extra Tough Gaskets can wash down at 1600psi

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(522 KB)
56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today’s industry, 25510
pdf

56 & 66 Series Industrial Switchgear. Providing the strength, reliability and durability demanded of today’s industry, 25510

DATE

27 Jul 2021

VERSION

2

DOWNLOAD

(7 MB)
SOCKET SWT SURF IP66 5PIN 32A - Product Environmental Profile
ZIP

SOCKET SWT SURF IP66 5PIN 32A - Product Environmental Profile

DATE

22 Sep 2020

VERSION

1

DOWNLOAD
Technical Specifications - 56 Series Industrial Switchgear
PDF

Technical Specifications - 56 Series Industrial Switchgear

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(170.9 KB)
Technical Specifications - Motor Control Gear
PDF

Technical Specifications - Motor Control Gear

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(177.9 KB)
How to make sure your new home meets official energy efficiency standards, 25189
PDF

How to make sure your new home meets official energy efficiency standards, 25189

DATE

21 Dec 2016

VERSION

1

DOWNLOAD

(1004.9 KB)

Frequently Asked Questions

hide show

What is the part number for a 56 series plug to go with 56C550?

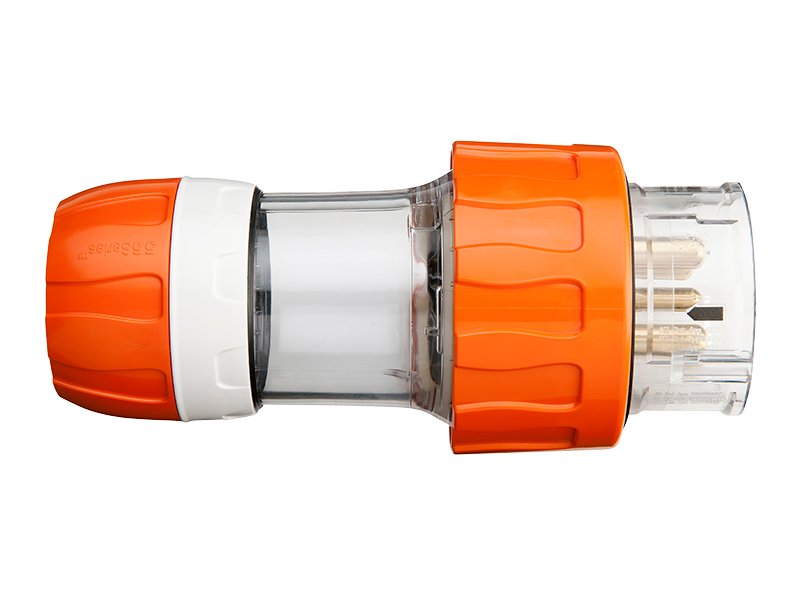

The part number for a 56 series plug to go with 56C550 is - 56P550 (Australia) or PDL56P550 (New Zealand)


User-added image


Please go to the website via the following links below and check under the Documentation Tab for more information.

Australia - https://www.clipsal.com/products/detail?CatNo=56P550&itemno=56P550-EO&backto=/search?q&tab-document-1=0
New Zealand - https://www.pdl.co.nz/products/detail?CatNo=PDL56P550&itemno=PDL56P550&backto=/search?q=56P550&tab-document-1=0
