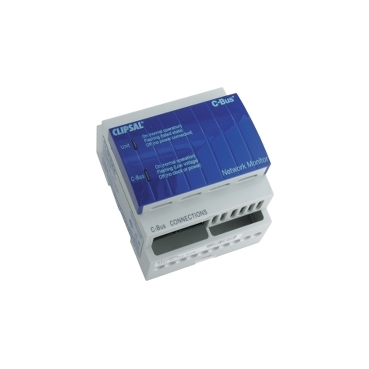

C-Bus DIN Rail Mounted Network Monitor, 4M Modules Wide

C-Bus DIN Rail Mounted Network Monitor, 4M Modules Wide

C-Bus DIN Rail Mounted Network Monitor, 4M Modules Wide

Item Number: 5500NMA

Retail
$493.91
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Physical

EU RoHS Directive

Under investigation

Others

Package 1 Weight

0.32 kg

Package 1 Height

100 mm

Package 1 width

114 mm

Package 1 Length

160 mm
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Specifications

  • Application Solutions

  • Corporate Marketing

Frequently Asked Questions

hide show

What is the replacement for a 5500CN?

The replacement for a 5500CN is 5500CN2.

What is used as the C-Bus to Bacnet Gateway

The 5500NAC or 5500SHAC can be used as Bacnet gateway depending on the number of Bacnet points which are required.
The 5500NAC has 500 Bacnet Points and the 5500SHAC has 50 Bacnet points.
Bacnet is normally used by Building Management systems.

Where to set Port numbers using NAC or SHAC

Access “Configuration” window on the web browser, select “System”, select “Services” which will allow you access to “HTTP server settings”, this is where your ports can be set.

How much power is dissipated by the high end Quantum PLCs?

This can be calculated as Bus Current * Bus Voltage.

140 CPU 651 50 -> 2160mA * 5V = 10.8W
140 CPU 651 60 -> 2760mA * 5V = 13.8W

140 CPU 651 60S-> 2760mA * 5V = 13.8W
140 CPU 652 60 -> 2760mA * 5V = 13.8W
140 CPU 658 60 -> 2760mA * 5V = 13.8W

140 CPU 670 60 -> 2500mA * 5V = 12.5W
140 CPU 671 60 -> 2500mA * 5V = 12.5W
140 CPU 671 60S-> 2500mA * 5V = 12.5W

140 CPU 672 60 -> 2500mA * 5V = 12.5W
140 CPU 672 61 -> 2500mA * 5V = 12.5W

140 CPU 678 61 -> 2500mA * 5V = 12.5W

To calculate BTU you can take the wattage and multiply it by 3.4144.

How to control RS-232 enabled devices with C-Bus Network Automation Controller – 5500NAC (5500SHAC)?

A Configuration Guide exist on the Exchange Community, see the link below or the attachment.

How to control RS-232 enabled devices with C-Bus Network Automation Controller – 5500NAC





What is the part number of the power pack to suit 5500CN2?

Power pack is supplied with the 5500CN2. We do not sell a replacement power pack to suit 5500CN2. If a replacement power pack is needed we recommend a power supply which can provide between 6-12V DC 100mA.

For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=5500CN2
