Batten Holder BC Large Base

White Electric | Batten Holder BC Large Base

Batten Holder BC Large Base

Item Number: 533-WE

The Clipsal 533 Bayonet Cap batten holder has a base diameter of 90mm, overall length of 60mm and mounting centres of 50mm. It is manufactured from rigid plastic and has a White Electric finish.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
batten holders

Specifications

Design

Range

Clipsal

Product or component type

BC lamp holder adaptor

Colour tint

white electric

Physical

Device mounting

surface

EU RoHS Directive

Under investigation

Provided equipment

  • lamp holder
  • skirt
  • base

Others

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

80.0 g

Package 1 Height

6 cm

Package 1 width

8.9 cm

Package 1 Length

8.9 cm
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • Certificates (MSDS)

  • Corporate Marketing

Frequently Asked Questions

hide show

How to troubleshoot a Micrologic P trip unit that doesn't display voltage or power measurements

Issue:
Micrologic P trip unit doesn't display voltage or power measurements.

Product Line:
PowerPact P and R and Masterpact NT and NW circuit breakers

Resolution:
If this P trip unit was upgraded from either a standard or ammeter trip unit, then to correct this, add the external voltage sensing (EVS) kit. Use:
S64203 for P frame unit mount or I-Line
S64210 for P frame with motor operator or rotary handle
S64209 for P frame drawout
S64208 for R frame unit mount or I-Line
S47506 for fixed NT or NW breakers
S47507 for drawout NT breakers
S48533 for drawout NW breakers
Refer to Installation Bulletin 48049-339-01 for all of the P and R frame kits.
Refer to Installation Bulletin 48049-296-02 for the fixed NT or NW as well as the drawout NT breakers and 48049-242-02 for the drawout NW breakers.

Why does the load side of the shorting contactor connect to A2, B2 and C2 on the ATS48 soft start?

Issue:
Shorting contactor wiring

 Product Line:
 ATS48

Environment:
All models and serial numbers

Cause:
None

Resolution:
The A2, B2 and C2 terminals on the soft start provide a current path through internal current transformers.  This provides overload protection when the shorting contactor is activated.
Refer to page 81 in the ATS48 Installation Guide for a wiring diagram.

What are the dimensions of the 533 batten holder?

The 533 batten holder has a base diameter of 90mm, overall lenght of 60mm and mounting centres of 50mm.




Please go to the website via the following links below and check under the Documentation Tab for more information.

Australia - https://www.clipsal.com/Trade/Products/ProductDetail?catno=533
New Zealand - https://www.pdl.co.nz/products/detail?CatNo=PDL533


How to configure HomeGate or Schedule Plus to start on boot in Windows 10

This outlines how to set up HomeGate or Schedule Plus to start when Windows 10 logs in. The process of configuring this has changed since Windows 8.1 and now requires the installer to make modifications to the Windows registry.

To begin, have the HomeGate/Schedule Plus project open. Under the Tools menu, select Create Desktop Shortcut. This will create a shortcut icon on the desktop of the computer which launches straight to the project. Next, locate this shortcut on the desktop, right click on it, select Properties and modify the Target to have “ /cgate /operate” at the end, if it has not already been done for you.

You should end up with something similar to the following example:

C:\Clipsal\HomeGate\HomeGate.exe "c:\clipsal\homegate\projects\c-gate test\c-gate test.ctd" /cgate /operate

Upon completion of this, move this file to a convenient location on the computer.

For this example, the file will be moved straight to the root of the C:\ drive.

Lastly, open the registry editor, either by searching for it in the start menu or hitting the Windows key + R at the same time and typing regedit.

Once in the registry, navigate to the following location

"hkey_local_machine\software\wow6432node\microsoft\windows\currentversion\run"

Right Click in the main section and select New -> String Value. Provide a useful name to the new String Value, but do not consider the name important.

Upon naming the String Value, right click on it and select Modify.

Under the Value Data: field, provide the location and the name of the shortcut that you created in the previous steps. In this example, the project shortcut was moved to C:\c-gate test.lnk (.lnk is the extension type used to identify a file as a shortcut and will need to be included in the Value Data: field).

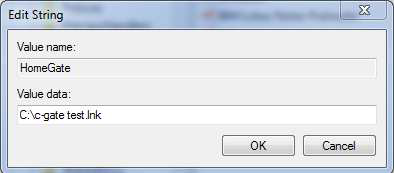

This is what it should look like by the time you have completed this.

Press OK and you will be left with your new entry in the registry, configured and ready to test.

Reboot the computer to confirm that HomeGate/Schedule Plus are starting when Windows boots and logs in.

Where can I find a copy of the Installation Guide for the ATS48 Soft Starters?

Issue:
Installation Guide request for the ATS48 Soft Starters

Product Line:
Altistart 48

Environment:
All

Cause:
Needs to find a copy of the ATS48 installation Manual

Resolution:
The manual number is S1A37491
This is the Altistart 48 Y-Range Soft Start Controllers Instruction Bulletin.  Click on the link below or see the attachment to download a copy of the manual.

https://www.schneider-electric.com/resources/sites/SCHNEIDER_ELECTRIC/content/live/FAQS/253000/FA253372/en_US/S1A37491.pdf
