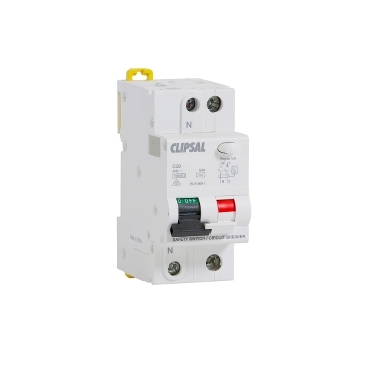

Max 4 Miniature Circuit Breaker/RCD, 2 Module, 2P, 16A, 30mA, 10kA, 240V

Max 4 Miniature Circuit Breaker/RCD, 2 Module, 2P, 16A, 30mA, 10kA, 240V

Max 4 Miniature Circuit Breaker/RCD, 2 Module, 2P, 16A, 30mA, 10kA, 240V

Item Number: 4RCBM216/30

Retail
$282.38
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX4

Product or component type

residual current breaker with overcurrent protection (RCBO)

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

[In] rated current

16 A

[Ue] rated operational voltage

240 V AC

Standards

AS/NZS 61009

IP degree of protection

  • IP20
  • IP40
    • Ambient air temperature for operation

      -5-40 °C

      REACh Regulation

      Free of Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120401EN

      Others

      Poles description

      2P

      Number of modules

      2

      Curve code

      C

      Earth-leakage sensitivity

      30 mA

      Earth-leakage protection class

      type AC

      Breaking capacity

      10000 A

      [Uimp] rated impulse withstand voltage

      4 kV

      Size

      81 x 36 x 77.5 mm conforming to DIN 43880

      Package 1 Weight

      223 g

      Package 1 Height

      42 mm

      Package 1 width

      85 mm

      Package 1 Length

      102 mm
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • Installation Instruction

      • Product Environmental

      • Operating Manuals

      • Certificates (MSDS)

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      What is part number for Resimax Busbar to suit RCBM216/30?

      RCBM216/30 can be used with RMXPH105,RMXPH112 or RMXPH124.

      What is the part number for a 2 pole 16amp 10kA RCBO?

      The part number for a 2 pole 16amp 10kA RCBO is - 4RCBM216/30

      For further information , visit link below:-
      https://www.clipsal.com/Trade/search-results?q=4RCBM216/30

      User-added image

      Are the RCBM series of RCBOs double pole isolating?

      Yes they are.

      Does 4RCBM220/30 switch both active and neutral?

       4RCBM220/30 will switch both active and neutral.
      For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=4RCBM220/30

      Replacement for the 4RCBE110/10

      This part has been replaced with 4RCBE210/30S

      Is the RCBM210/30 an RCD only ,or is it a combination RCD/MCB?

      The RCBM210/30 is a combination RCD/MCB.

      For further information , visit link below:-
      https://www.clipsal.com/Trade/search-results?q=RCBM210/30
      User-added image
