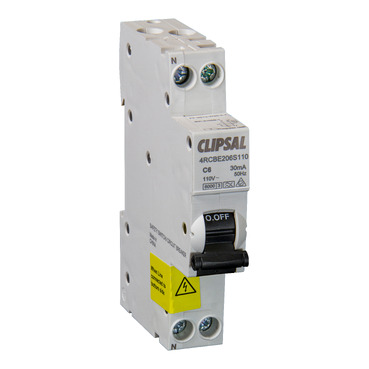

Max 4 RCD/MCB, 1P+N, 1 Module, 6A, 6kA, 110V, 30mA, Slim

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX4

Product or component type

residual current breaker with overcurrent protection (RCBO)

Product brand

Clipsal

Device application

distribution

Sustainable offer status

Green Premium product

Physical

[In] rated current

6 A

[Ue] rated operational voltage

110 V AC

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

IP degree of protection

  • IP20 conforming to IEC 60529
  • IP40 (modular enclosure) conforming to IEC 60529
    • EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP100702EN_V1

      Others

      Poles description

      1P + N

      Neutral position

      left

      Number of modules

      1

      Number of protected poles

      1

      Network type

      AC

      Trip unit technology

      thermal-magnetic

      Curve code

      C

      Earth-leakage sensitivity

      30 mA

      Earth-leakage protection class

      type A

      Breaking capacity

      6000 A

      Package 1 Weight

      0.13 kg

      Package 1 Height

      0.02 mm

      Package 1 width

      0.074 mm

      Package 1 Length

      0.098 mm
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • Product Environmental

      • Installation Instruction

      • Operating Manuals

      • Certificates (MSDS)

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      Looking for a 10mA 20A RCBO.

       Part code is 4RCBE220/10

      What is the part code for a 56 Series with a 32a 10ma RCBO

      Part codes you need a PDL 56CB4  with a 4RCBE232/10

      What is the part code for a 10A 1phase Socket protected by 10mA RCD

      You can use 56SO310 +56CB4 + 56E3 + 4RCBE210/10

      Will the Clipsal 4RCBE2xx/10 RCBOs fit on the MSC chassis designed for the DPN Vigis?

      Yes the 4RCBE RCBOs will fit the CD25xxxN chassis as they have the same 9mm pitched terminals.

      Do Clipsal have a 20a single module RCBE @ 10ma suited for hospital use ?





      Yes we do , In this case it would be the 4RCBE220/10S.
      To be approved for use in hospitals the RCBO must be approved as "Type 1" (ie: 10mA sensitivity, switch both Neutral and Active, and trip in <40ms)
      The below range of Slimline RCBO's are rated as Type 1 and therefore compatible


      For more information on Clipsal Circuit protection please visit the Clipsal web site on the provided link https://www.clipsal.com/Trade/search-results?q=circuit%20protection

      Replacement for the 4RCBE110/10

      This part has been replaced with 4RCBE210/30S
