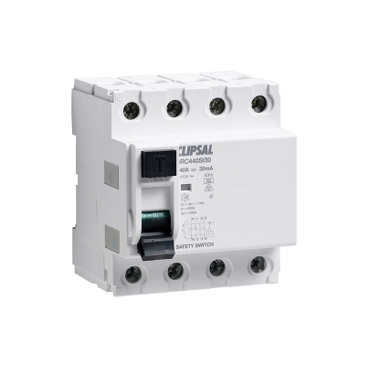

Max 4 Combination Residual Current Device, 2 Module, 2 Phase, 40A, 30mA, SI Type

Back to 4 Pole Home SUPER IMMUNE (SI) Type 4 Pole

Max 4 Combination Residual Current Device, 2 Module, 2 Phase, 40A, 30mA, SI Type

Max 4 Combination Residual Current Device, 2 Module, 2 Phase, 40A, 30mA, SI Type

Item Number: 4RC440SI30

Retail
$570.54
RRP (Inc. GST)
Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

MAX4

Product or component type

residual current circuit breaker (RCCB)

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

[In] rated current

40 A

[Ue] rated operational voltage

415 V AC

Mounting support

DIN rail

Standards

AS/NZS 61008

IP degree of protection

IP40

Ambient air temperature for operation

-5-40 °C

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP110203EN

Others

Poles description

4P

Number of modules

4

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A-SI

[Uimp] rated impulse withstand voltage

6 kV

Size

81 x 72 x 75 mm conforming to DIN 43880

Pollution degree

2

Package 1 Weight

363.5 g

Package 1 Height

85 mm

Package 1 width

92 mm

Package 1 Length

77 mm
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Product Environmental

  • Installation Instruction

  • Operating Manuals

  • Certificates (MSDS)

  • Corporate Marketing

A Powerful Choice, for all your switchboard requirements

A Powerful Choice, for all your switchboard requirements

172 KB PDF

Choosing the correct surge protection equipment. An easy to use guide for contractors

Choosing the correct surge protection equipment. An easy to use guide for contractors

513 KB PDF

Circuit Protection Slim RCBO Range. Same slim design... much bigger range, 26587

Circuit Protection Slim RCBO Range. Same slim design... much bigger range, 26587

218.5 KB PDF

Clipsal Lifesavers in Electrical Protection - 22498

Clipsal Lifesavers in Electrical Protection - 22498

1.4 MB PDF

Clipsal Resi MAX Circuit Protection - The complete residential solution, 124301

Clipsal Resi MAX Circuit Protection - The complete residential solution, 124301

1.3 MB PDF

Clipsal timers won’t forget. 4TC and 4TCD1 Switchboard-Mounted Programmable Timers, 26250

Clipsal timers won’t forget. 4TC and 4TCD1 Switchboard-Mounted Programmable Timers, 26250

1.3 MB PDF

Discover the seven steps to a safe and secure home, 22527

Discover the seven steps to a safe and secure home, 22527

198.7 KB PDF

Energy Efficiency Trade Product Guide, 20742

Energy Efficiency Trade Product Guide, 20742

1.7 MB PDF

MAX4 Circuit Protection. MAX performance. Complete protection.

MAX4 Circuit Protection. MAX performance. Complete protection.

5.4 MB PDF

Power to Perform, DIN Rail mounted Switched Sockets

Power to Perform, DIN Rail mounted Switched Sockets

427.6 KB PDF

RCD and MCBs Slim in Size Big on Features, 23041

RCD and MCBs Slim in Size Big on Features, 23041

941 KB PDF

Resi MAX circuit protection, 141178

Resi MAX circuit protection, 141178

769.3 KB PDF

Residential Energy Efficiency Guide, 20097

Residential Energy Efficiency Guide, 20097

5.8 MB PDF

Surge Protection Product Guide

Surge Protection Product Guide

100.6 KB PDF

The only Great White protection range, 23589

The only Great White protection range, 23589

2.6 MB PDF

PEP-RCCB MULTI 9 2P 25A 30MA I AC (S) OEM

PEP-RCCB MULTI 9 2P 25A 30MA I AC (S) OEM

ZIP

Installation Instructions - F1260/08 - 4RC, 4RCBM and 4RCBE Residual Current Devices, 21198

Installation Instructions - F1260/08 - 4RC, 4RCBM and 4RCBE Residual Current Devices, 21198

195.1 KB PDF

General Instructions - RCD Series fault finding guide - F1471

General Instructions - RCD Series fault finding guide - F1471

77.7 KB PDF

Certificate of Approval

Certificate of Approval

1.7 MB pdf

Clipsal Residential Safety and Security Solutions, 25611

Clipsal Residential Safety and Security Solutions, 25611

3.4 MB PDF

Frequently Asked Questions

hide show

What would be the replacement for a 4RCD440A30 ?

The replacement part would be a 4RC440SI30 which is super immune.

For more information on this product range please visit the Clipsal website on the link provided
https://www.clipsal.com/Trade/search-results?q=4rc440si30

What are the features for the 4RC440SI30?

Some of the key features are:
  • Unique new white finish for a fresh modern look
  • Base module = 18 mm wide, compact standardised and consistent module dimensions
  • Lift-up terminals. Safer ‘no hot spot’ terminations and all cable strands are locked in
  • Cable automatically guided to the correct position: terminals with guard
  • Fast closure
  • The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety
  • Same housing as AC type MCBs. Uniformity in space requirements and installation
  • Superior, safe and reliable DC breaking per pole
  • Used with marine, telecommunications, solar power, emergency power, battery power
  • Excellent breaking capability for its compact size
  • Super immune type
  • 75 mm modular spacing
  • Operating temperature: -5 to 40 deg C
  • Degree of pollution is 2
  • Rated Impulse withstand voltage is 6 kV
For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=4RC440SI30




What is the difference between the RCD440/30 and 4RC440/30?

The RCD440/30 id 6ka with a fuse and the 4RC440/30 is 10ka.

Is there an alternative for part no 4EL40/4/30?

4RC440/30

Does the 4 pole 63A super immune 4RC463SI30 RCD have a kA rating?

No as it doesnt deal with over current fault protecttion.



What is the replacement for 4EL40/2/30?

The replacement part name is 4RC240/30
