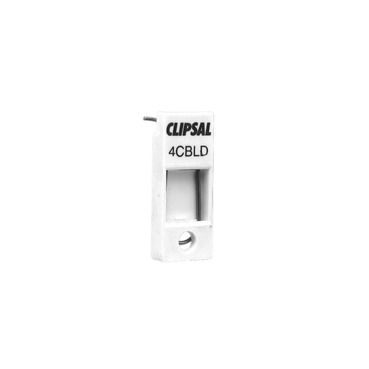

Max 4 Miniature Circuit Breakers, Padlock Device

Max 4 Miniature Circuit Breakers, Padlock Device

Max 4 Miniature Circuit Breakers, Padlock Device

Item Number: 4CBLD

Retail
$23.94
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Power

Product brand

Clipsal

Product or component type

padlocking device

Physical

EU RoHS Directive

Under investigation

Others

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

3.7 g

Package 1 Height

15 mm

Package 1 width

19 mm

Package 1 Length

43 mm
Show all specifications

Frequently Asked Questions

hide show

What is replacement for 4C9FD?

The replacement for the part is - 4C11FD.

How do I cold start the Matrix-UPS?


Issue

How do I start up a Matrix UPS on battery (cold start)?


Product Line

Matrix UPS


Environment

All serial ranges


Cause

A UPS can be codlstarted to provide battery power to equipment or as a troubleshooting step.


Resolution


The Matrix-UPS can be cold started through the LCD display screen, which is located on the front of the Matrix-UPS EU (Electronics Unit). When the dual pole input circuit breaker is moved to the ON position, this action turns the Matrix-UPS logic on. When the UPS Control menu on the LCD shows the 'Cold Start UPS' option, the unit is not able to go on line. That is, the unit will be operating on battery because it does not sense good utility voltage. After cold starting, the output frequency will always be 60 Hz on the North American, Worldwide, and Japanese models. Although the unit can be cold started, the Matrix-UPS is not intended for use as a portable power source.



Is there a first scan bit available in SoMachine or EcoStruxure Machine Expert?

Issue
How do I logically determine the first Task Cycle in a SoMachine or EcoStruxure Machine Expert PLC?

Product Line
SoMachine (Versions: v2.0, v3.1, v4.0, v4.1, v4.2, v4.3)
 - PLCs: M238, M258, HMISCU
EcoStruxure Machine Expert (Versions: v1.1, v1.2.0, v1.2.2)
 - PLCs: HMISCU, M241, M251, M262

Environment
PLC programming software for Windows PC -> Logic Builder -> POU program

Resolution
The functions "IsFirstMastColdCycle" and "IsFirstMastCycle", is True during the first MAST task cycle after a start.

For example, with this small program in Structured Text:
(a and b are INT variables)

IF IsFirstMastColdCycle()
    THEN
        a := a + 1;
END_IF
IF IsFirstMastCycle()
    THEN
        b := b + 1;
END_IF


Result:
The value of "a" will be 1 the first time that the PLC starts (Cold Start).
The value of "b" will increments each time that the PLC stops and starts (Warm Start).
