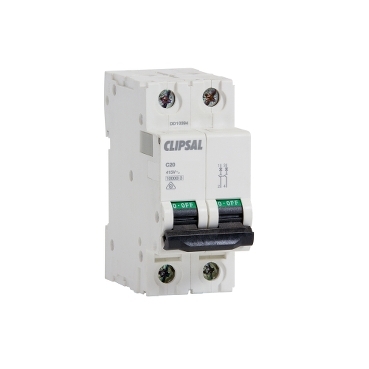

Max 4 Miniature Circuit Breakers, 2 Pole, 2 Modules, 36mm, 415V, 40A, 10kA

Max 4 Miniature Circuit Breakers, 2 Pole, 2 Modules, 36mm, 415V, 40A, 10kA

Max 4 Miniature Circuit Breakers, 2 Pole, 2 Modules, 36mm, 415V, 40A, 10kA

Item Number: 4CB240/10

Retail
N/A
RRP (Inc. GST)

Product Dimensions

Width icon

Width36 mm

Height icon

Height81 mm

Depth icon

Depth78.5 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Number of poles

2

[In] rated current

40 A

[Ue] rated operational voltage

415 V

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

  • screw terminal for 1 cable(s) 0.5-35 mm² rigid
  • screw terminal for 1 cable(s) 0.5-25 mm² flexible
  • screw terminal for 1 cable(s) 0.5-25 mm² flexible with ferrule
    • Wire stripping length

      13 mm

      IP degree of protection

    • IP20 conforming to IEC 60529
    • IP40 (modular enclosure) conforming to IEC 60529
      • Ambient air temperature for operation

        -25-70 °C

        Ambient air temperature for storage

        -40-70 °C

        Standards

        AS/NZS 60898

        Relative humidity

        95-95 % at 55-55 °C

        Height

        81 mm

        Width

        36 mm

        Depth

        78.5 mm

        Net weight

        215 g

        EU RoHS Directive

        Compliant

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

        Product out of China RoHS scope. Substance declaration for your information

        Environmental Disclosure

        ENVPEP1304004

        Others

        Curve code

        C

        Number of modules

        2

        Breaking capacity

        10 kA conforming to EN 60898

        Network type

        AC

        Network frequency

        50/60 Hz

        [Ui] rated insulation voltage

        500 V

        Tightening torque

        3.5 N.m

        Tropicalisation

        2 conforming to IEC 60068-1

        Package 1 Weight

        206 g

        Package 1 Height

        75 mm

        Package 1 width

        85 mm

        Package 1 Length

        37 mm
        Show all specifications

        Frequently Asked Questions

        hide show

        Is part number 4CB240/6DC still available?

        Pes. Part number 4cb240/6dc is still available as  standard part.

        What is the replacement for 4EL40/2/30?

        The replacement part name is 4RC240/30

        What is the cable size to suit 4CB3100/10?

        The part number 4CB3100/10 will accommodate up to 50mm2 normal cable and up to 35mm2 flexible cable.

        Looking for a 10mA 20A RCBO.

         Part code is 4RCBE220/10

        What are the conections of the RCD240/30?

        The connection of the RCD240/30 is line at the top and load at the bottom.

        For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=RCD240/30



        Is there a lock-off to suit the 4CB3100/10?

        Yes, the Schneider MGN26380 will suit the Clipsal Max 4 Range.
