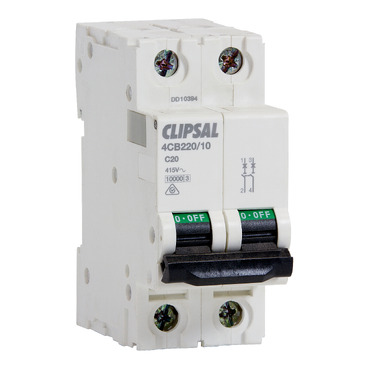

Max 4 Miniature Circuit Breakers, 2 Pole, 2 Modules, 36mm, 415V, 20A, 10kA

Max 4 Miniature Circuit Breakers, 2 Pole, 2 Modules, 36mm, 415V, 20A, 10kA

Max 4 Miniature Circuit Breakers, 2 Pole, 2 Modules, 36mm, 415V, 20A, 10kA

Item Number: 4CB220/10

Retail
N/A
RRP (Inc. GST)

Product Dimensions

Width icon

Width36 mm

Height icon

Height81 mm

Depth icon

Depth78.5 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Number of poles

2

[In] rated current

20 A

[Ue] rated operational voltage

415 V

Mechanical durability

20000 cycles

Electrical durability

20000 cycles

Connections - terminals

  • screw terminal for 1 cable(s) 0.75-16 mm² rigid
  • screw terminal for 1 cable(s) 0.33-10 mm² flexible
  • screw terminal for 1 cable(s) 0.33-10 mm² flexible with ferrule
    • Wire stripping length

      13 mm

      IP degree of protection

    • IP20 conforming to IEC 60529
    • IP40 (modular enclosure) conforming to IEC 60529
      • Ambient air temperature for operation

        -25-70 °C

        Ambient air temperature for storage

        -40-70 °C

        Standards

        AS/NZS 60898

        Relative humidity

        95-95 % at 55-55 °C

        Height

        81 mm

        Width

        36 mm

        Depth

        78.5 mm

        Net weight

        215 g

        EU RoHS Directive

        Compliant

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

        Product out of China RoHS scope. Substance declaration for your information

        Environmental Disclosure

        ENVPEP1304004

        Others

        Curve code

        C

        Number of modules

        2

        Breaking capacity

        10 kA conforming to EN 60898

        Network type

        AC

        Network frequency

        50/60 Hz

        [Ui] rated insulation voltage

        500 V

        Tightening torque

        2 N.m

        Tropicalisation

        2 conforming to IEC 60068-1

        Package 1 Weight

        213 g

        Package 1 Height

        75 mm

        Package 1 width

        87 mm

        Package 1 Length

        37 mm
        Show all specifications

        Frequently Asked Questions

        hide show

        Looking for a 10mA 20A RCBO.

         Part code is 4RCBE220/10

        Does 4RCBM220/30 switch both active and neutral?

         4RCBM220/30 will switch both active and neutral.
        For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?CatNo=4RCBM220/30

        What is the cable size to suit 4CB3100/10?

        The part number 4CB3100/10 will accommodate up to 50mm2 normal cable and up to 35mm2 flexible cable.

        Do Clipsal have a 20a single module RCBE @ 10ma suited for hospital use ?





        Yes we do , In this case it would be the 4RCBE220/10S.
        To be approved for use in hospitals the RCBO must be approved as "Type 1" (ie: 10mA sensitivity, switch both Neutral and Active, and trip in <40ms)
        The below range of Slimline RCBO's are rated as Type 1 and therefore compatible


        For more information on Clipsal Circuit protection please visit the Clipsal web site on the provided link https://www.clipsal.com/Trade/search-results?q=circuit%20protection

        What size cables fit into the 4CB3125/10?

        If the cable is Rigid/ Semi Rigid the 4CB3125/10 breaker will take a cable from 1mm²- 50mm².

        OR

        If the cable is Flexible or Ferrule the 4CB3125/10 breaker will take a cable from 1.5mm²- 35mm².

        What is the part code for a 10A 1phase Socket protected by 10mA RCD

        You can use 56SO310 +56CB4 + 56E3 + 4RCBE210/10
