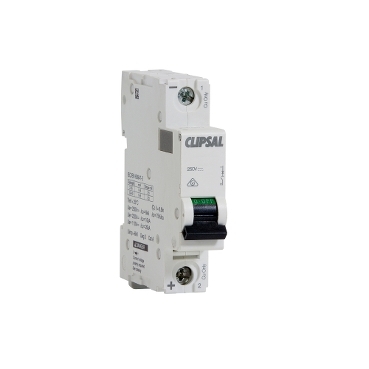

Clipsal MAX4 Miniature circuit breaker DC Network type 1P 10 A C curve 6000 A 250 V

Clipsal MAX4 Miniature circuit breaker DC Network type 1P 10 A C curve 6000 A 250 V

Clipsal MAX4 Miniature circuit breaker DC Network type 1P 10 A C curve 6000 A 250 V

Item Number: 4CB110/6DC

Product Dimensions

Width icon

Width18 mm

Height icon

Height81 mm

Depth icon

Depth78.5 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Sustainable offer status

Green Premium product

Product brand

Clipsal

Physical

Number of poles

1

[In] rated current

10 A

[Ue] rated operational voltage

250 V

Mechanical durability

20000 cycles

Electrical durability

3000 cycles

Connections - terminals

  • screw terminal for 1 cable(s) 1-25 mm² rigid
  • screw terminal for 1 cable(s) 1-16 mm² flexible
  • screw terminal for 1 cable(s) 1-16 mm² flexible with ferrule

Wire stripping length

14 mm

IP degree of protection

  • IP20 conforming to IEC 60529
  • IP40 (modular enclosure) conforming to IEC 60529

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Standards

AS/NZS 60898

Relative humidity

95 % at 55 °C

Height

81 mm

Width

18 mm

Depth

78.5 mm

Net weight

128 g

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP120608EN_V0

Others

Curve code

C

Number of modules

1

Breaking capacity

6 kA conforming to IEC 60947-2

Network type

DC

[Uimp] rated impulse withstand voltage

6 kV

Tightening torque

2.5 N.m

Pollution degree

3

Tropicalisation

2

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

110.0 g

Package 1 Height

7.2 cm

Package 1 width

1.8 cm

Package 1 Length

8.4 cm
